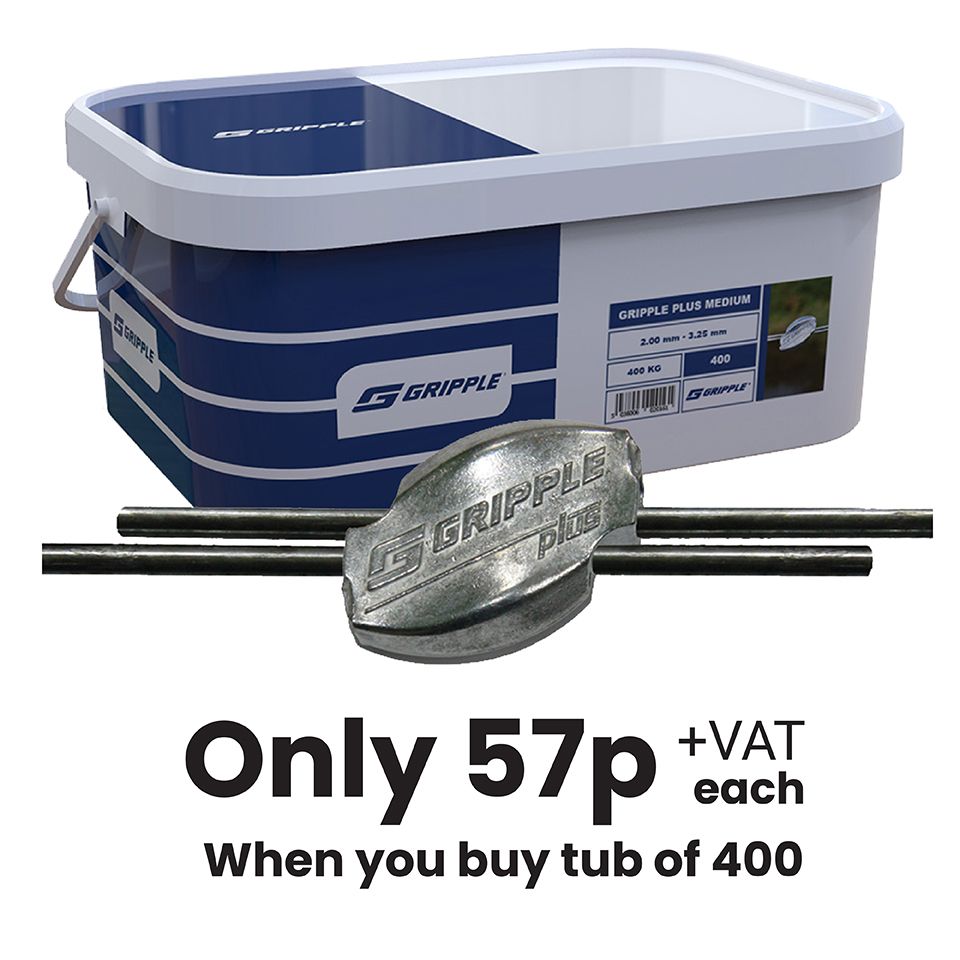

Gripple Plus Wire Joiner

Product Code
Gripple Plus Wire Joiner

If you have any job specific question relating to this product, or would like a no obligation quotation prepared, please get in contact using this form. For quotation purposes, please be as specific regarding your requirements as possible

  • Join and tension in one
  • Suitable for a variety of fence wires, trellis and support wires

See full description

Delivery is free on orders over £250 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £250, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

Gripples are part of a comprehensive range of range of wire joiners and tensioners to suit a variety of fence wires, trellis and support wires.

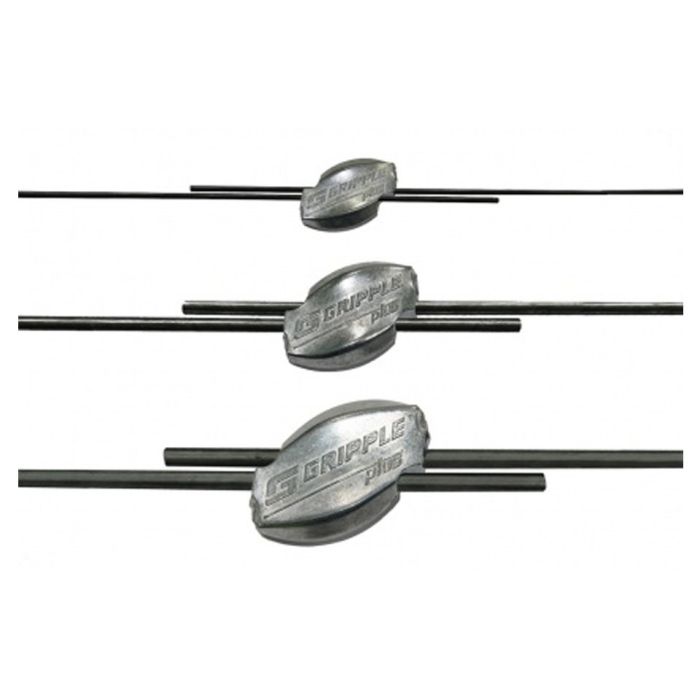

Sizes available

  • Small – Used to join plain wire and install lightweight stock netting. Suits 1.40 mm - 2.20 mm (17 - 13 gauge) wire and a load up to 300 kg / 600 lbs
  • Medium – Used as an in-line joiner or as an end anchor for stock fencing, high tensile barbed wire and plain wire. Suits 2.00 - 3.25mm mild steel / 2.00 - 2.85mm high tensile steel / 2 x 1.7/2.0mm high tensile barbed wire and a load up to 400 kg / 880 lbs
  • Large – used as an in-line joiner or as an end anchor for stock fencing and plain wire. Suits 3.25 mm - 4.20 mm (10 - 71/2 gauge) wire and a load up to 600 kg / 1320 lbs
  • Jumbo - used as an in-line joiner or as an end anchor for stock fencing, fruit trellising and plain wire. Suits 2.50 mm - 3.15 mm (12 - 10 gauge) wire and a load up to 600 kg / 1320 lbs.

Join and tension in one

  • 4 times faster than knotting and other traditional methods
  • The simple push fit maintains the inherent strength of the wire
  • High load holding
  • Easy maintenance - one-way movement always allows for re-tensioning
  • High grade ceramic roller for optimum corrosion resistance
  • Adjustment feature, can be re-tensioned year after year
  • Use with the Gripple Torq Tensioning Tool or all steel contractors tensioning tool for easy installation

Tips

  • Always leave a wire tail of at least 75 mm / 3” to allow for re-tensioning
  • Secure tail wires with the Gripple Twisters or tape to prevent sharp ends protruding
  • If the Gripple unit is pushed onto the wire too far, release the pressure then use the setting key to allow the unit to move backwards
  • When tensioning wire netting it is advisable to tension half in one direction then continue in the opposite direction, this way you retain an even pressure and control the mesh pattern, the idea being to end up with a mesh size similar to the net
  • An alternative to using blue gripple twisters is to finish with a long tie off which will allow re-tensioning at a later date, whilst not leaving any protruding ends
