HT Hinge Joint Stock Fence HT8-80-15
- 100m rolls have XTREME reinforced alu/zinc coating that exceeds BSEN 10224-2
- Retains its tension for the life of the fence, wire produced to BS4102
- Compatible with Clipex Standard posts
TRADE VOLUMES
For resell or volume enquires get in touch now
Specification Sheets
Browse our selection of specifications sheets for more details on selected products. Find out more.
- 100m rolls have XTREME reinforced alu/zinc coating that exceeds BSEN 10224-2
- Retains its tension for the life of the fence, wire produced to BS4102
- Compatible with Clipex Standard posts

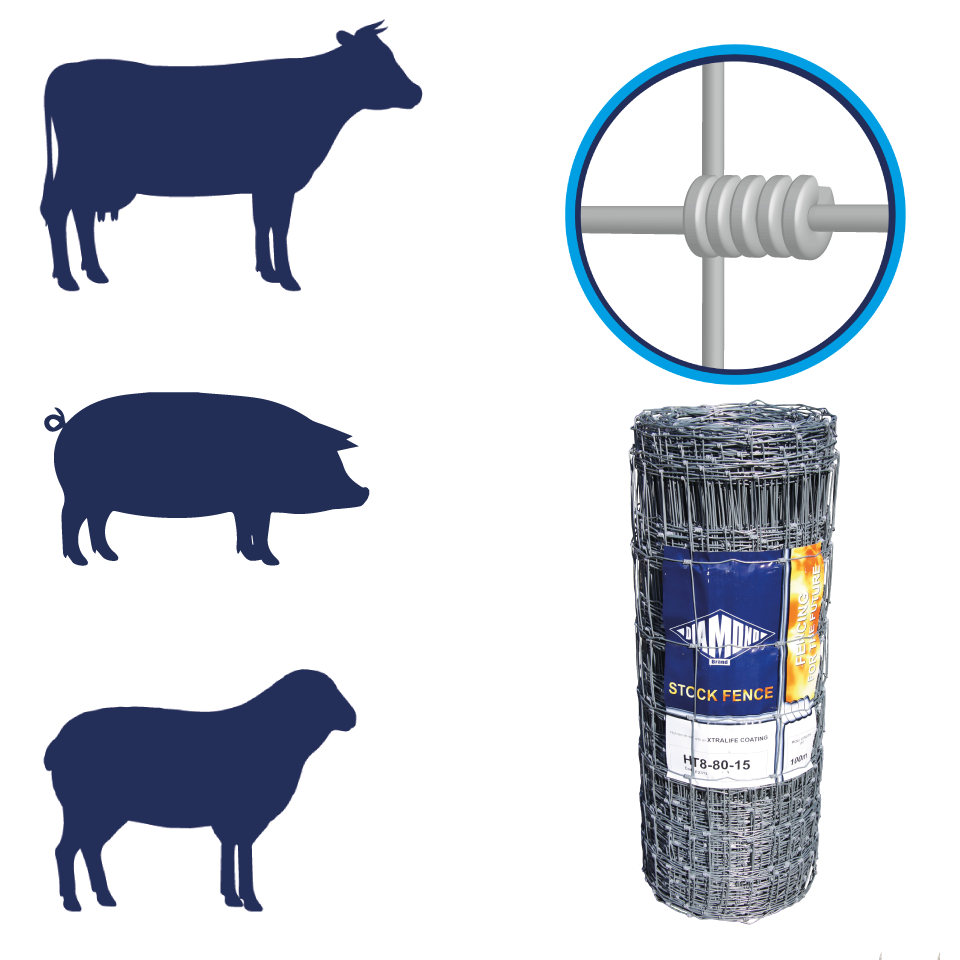

HT8/80/15 galvanised stock fencing is suitable for lamb, sheep, pig and livestock. This is currently the most popular type of agricultural wire netting pattern supplied in the UK.
It is available in 100m and 300m rolls.
- 100m rolls - Exceeding British Standards BSEN10244, the XTREME reinforced coating provides a protection that lasts 3-4 times longer than commercially galvanised stock fence. Steel starts to rust when in contact with oxygen and air humidity but the XTREME reinforced coating protects it against corrosion due to oxidation, which is superior to traditional galvanisation.
- 300m rolls - Manufactured from hot-dipped galvanised high tensile wire, which conforms to BSEN10244 for a longer maintenance free life.
High tensile wire netting is up to 3 times stronger than traditional mild steel stockfence. It's spring like properties can be strained tighter, it will elongate less than 1% until taut.
Simply strain out 50% of the tension curves and you will have a fence that will perform in the varying climatic changes and retain its tension throughout its lifetime. Due to the elasticity of the netting, intermediate stakes can be spaced further apart up to 3.5m terrain dependant, this will give you a saving in both material and labour costs, whilst providing you with a very strong long lasting fence.
Specifications
- Suitable for: Sheep, pigs and cows
- Overall height: 80cm / 800mm
- No. of line wires: 8
- Distance between vertical wires: 15cm / 150mm
- Distance between horizontal wires: Variable (see product image for mesh pattern)
- Wire gauge: 2.5mm high tensile wire throughout
- Knot type: Hinge joint
- 100m rolls - Exceeding British Standards BSEN10244, the XTREME reinforced coating provides a protection that lasts 3-4 times longer than commercially galvanised stock fence. Steel starts to rust when in contact with oxygen and air humidity but the XTREME reinforced coating protects it against corrosion due to oxidation, which is superior to traditional galvanisation.
- 300m rolls - Manufactured from hot-dipped galvanised high tensile wire, which conforms to BSEN10244 for a longer maintenance free life.
- Available roll lengths: 100m, 300m
Did you know?
A high tensile wire fence shall be strained and keep that tension for a minimum of 3 years without intervention.
- Typically the line wires in a high tensile fence should be strained between 125 - 150kg.
- Typically, high tensile barbed wire should be strained between 100-125kg.
- A mild steel wire fence shall be strained, checked annually and re-tensioned where necessary.
- Typically the line wire and barbed wires in a mild steel fence should be strained between 50-75kg.
Please note - If fencing lambs or sheep we would also recommend using 22cm vertical wire spacing.
-
