Non-Woven Geotextile Membrane

Product Code
Non-Woven Geotextile Membrane
Only %1 left
From: £263.80 £219.83
  • Ideal for separation of materials and filtration
  • Excellent permeability and lower strength
  • Three different roll sizes and grades

See full description

Delivery is free on orders over £420 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £420, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

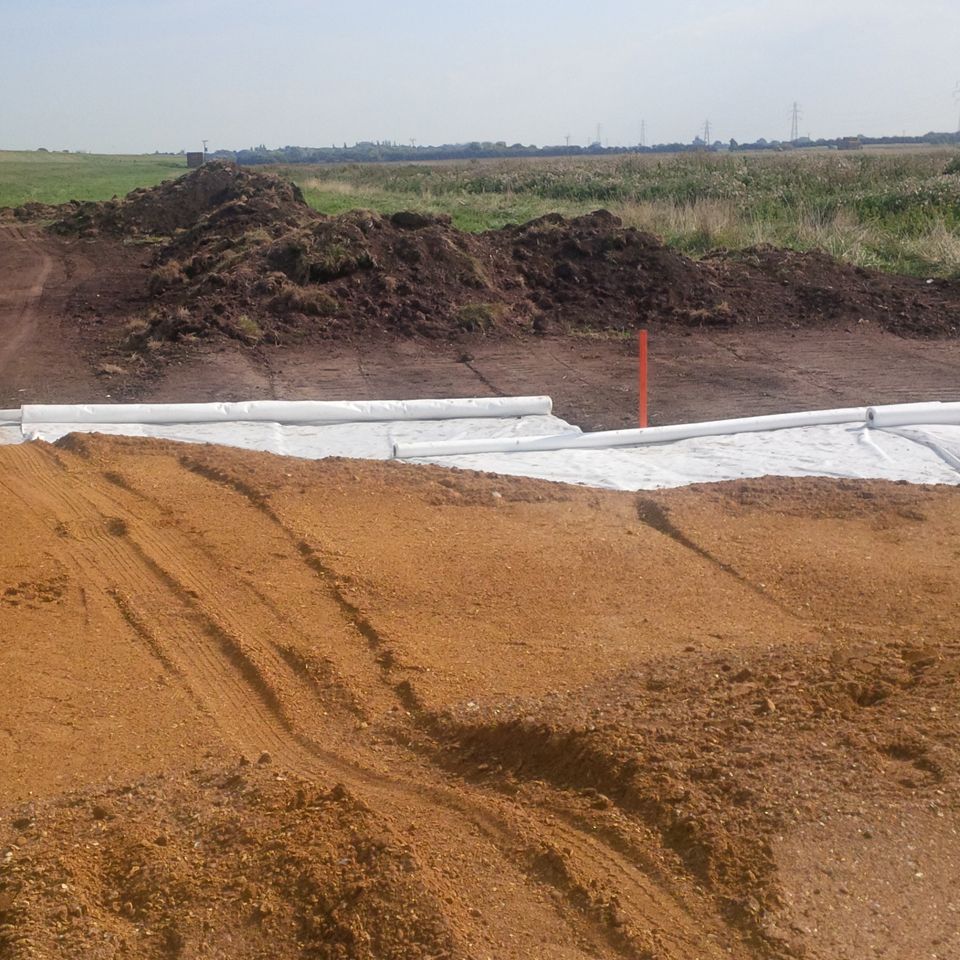

Poly-spun membrane is a non-woven alternative to the common black woven geotextile membrane. Whilst the black woven membrane is ideal for adding strength and stability at ground level, the main function of spun non-woven membrane is the separation of materials and filtration.

Our spun non-woven geotextile is UV stabilised and will not rot. It is commonly used between different construction layers to avoid mixing of materials. The high water flow and excellent filter properties it features, combined with exceptional mechanical properties, ensures that fine grained particles are retained at the same time as allowing free movement of water.

Options available

  • 100m x 4.5m standard non-woven membrane
  • 100m x 2m standard non-woven membrane
  • 100m x 4.5m premium non-woven membrane
  • 100m x 4.5m needle punched 200 membrane


Projects using geotextile membrane often cost less on materials, less time on excavation and it is less likely you'll need to return to repair minor defects. There are no specialist tools or training required and so very easy and quick to install. Other benefits of using membrane include -


  • Preventing sub base stone from migrating to the surface
  • Filtering surface water efficiently and quickly
  • Preventing the upper surface from migrating downwards, clogging the drainage sub base


There are no two geotextiles on the market that share the exact same properties. When comparing geotextiles there are three key areas to look at, they are; tensile strength, CBR puncture resistance and water permeability. The higher the test data, the more superior the product.

Standard non-woven membrane

  • Tensile strength (kN/m) – MD 8 / CD 8
  • CBR puncture resistance (N) – 1500
  • Water permeability (m/sec) ((x10-3) – 130

Premium non-woven membrane
  • Tensile strength (kN/m) – MD 12 / CD 12
  • CBR puncture resistance (N) – 2000
  • Water permeability (m/sec) ((x10-3) – 110

* Please note - Important: Since conditions of use and location are beyond our control, our products are sold, without guarantee, purchasers must accept responsibility for satisfying themselves that the product is fit for their intended purpose and location before purchase or installation.
