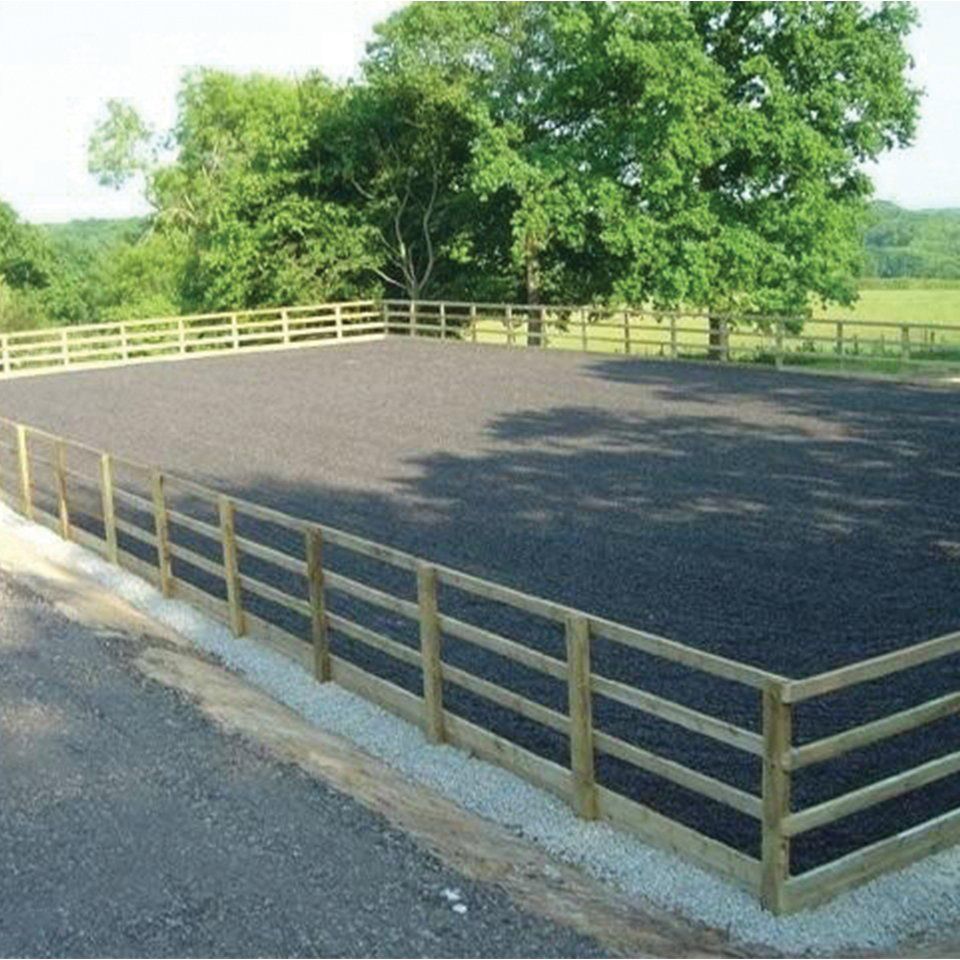

Riding Arena Kit 40m x 20m

Product Code

Please email sales@mcveighparker.co.uk or call us for our best offer.

All you need to erect your own arena, just add your choice of topping and hardcore (supplied by others).

See full description

Delivery is free on orders over £420 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £420, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

Materials required for a standard 40m x 20m Kit.

All you need to erect your own arena, just add your choice of topping and hardcore (supplied by others).


Kit includes –
*This new upgraded kit includes an improved heavier top layer spun membrane*

  • 66 x Retaining Boards 3.6m x 150mm x 38mm
  • 99 x 3.6m x 38 x 87mm Sawn Rail Treated
  • 66 x Class 4 2.1m x 75 x 125 Ptd Sawn Post
  • 10 x 1kg bag R/Head Nail 100mm galv
  • 2 x Perforated Land Drainage Pipe 80mm x 100m
  • 1 x Perforated Land Drainage Pipe 100mm x 50m
  • 10 x Land Drainage Y Junctions 100mm
  • 3 x 100m x 4.5m Woven geotextile membrane black
  • 3 x 4.5m x 100m fibre 140 membrane
  • 1 x 3.6m Softwood gate
  • 1 x Spring Catch Set - Pre Packed Galv
  • 1 x Hinge Set 600mm Adj B/Hinge P/Pack Galv
  • 2 x Class 4 2.4m x 175mm x 175mm Treated Post


Optional upgrade extras include –

  • More drainage
  • Alternative catches such as Kitch catch
  • Heavier spec timber available
  • Windbreak options to reduce topping loss
  • Upgrade retaining boards to UC4


Please note -
Other sizes available please contact us to discuss your requirements.


An all weather horse arena or gallop must be designed and constructed to cope with adverse weather conditions and preserve the properties of the riding surface.
Installing a riding area or gallop is not beyond the ability of a competent contractor or landowner.  Therefore the inclusion of a McVeigh Parker Geotextile membrane is vital to maintain a clean free draining surface and improve stability.Important: Since conditions of use and location are beyond our control, our products are sold, without guarantee, purchasers must accept responsibility for satisfying themselves that the product is fit for their intended purpose and location before purchase or installation.


We remind customers that wood is a natural ‘living’ material and this means it is affected by atmospheric and ground conditions, due to the fact that it is not evenly porous, it may dry at an uneven rate. This can create pressure inside the wood potentially causing it to split, warp or twist when its exposed to the atmosphere and sunlight. Pressure treated wood will contract as the water used in the process evaporates from the timber. Natural weathering should not weaken or decrease the life expectancy of the wood. Using dark stain or other coatings will increase U.V. absorption and speed up the drying process. Using sealant or oils will help hold moisture in and lets the timber dry at a slower rate.
McVeigh Parker cannot be held responsible for splitting, discoloration or warping after delivery.
