X Fence Stock Fence XHT8-80-15
Specification Sheets
Browse our selection of specifications sheets for more details on selected products. Find out more.
- Suitable for: Livestock
- Super strong single piece vertical wire
- XTRALIFE alu/zinc coating lasts 3-4 times longer

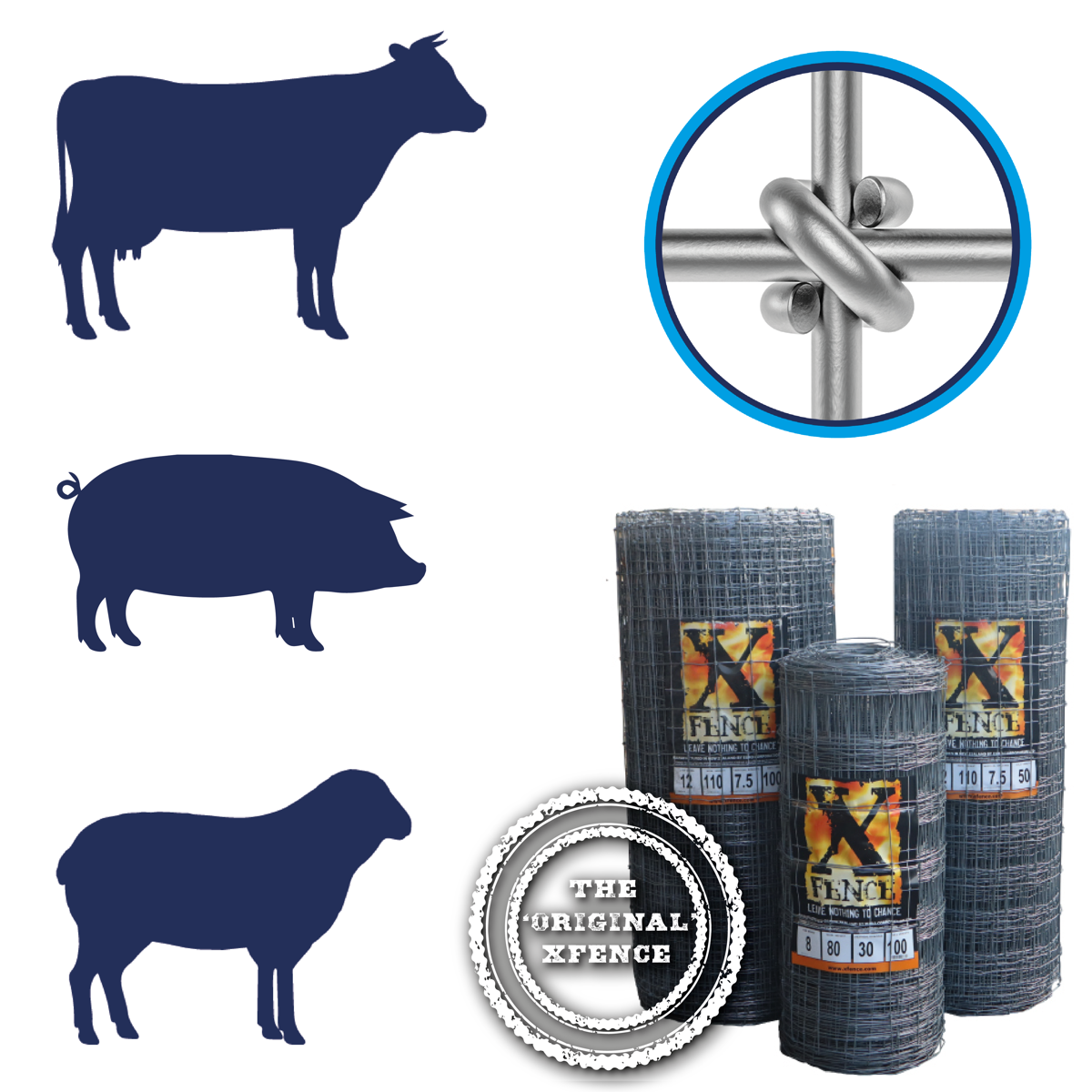

An unobtrusive smooth surface X knot greatly reduces the risk of fleece removal or hide damage, this is the most common mesh pattern used in the UK, ideal for most types of livestock.
X Fence stock fence is a premium wire netting that will give a very good return on investment. The one piece vertical wire allows you to space intermediate stakes up to 5m apart. Fewer stakes mean less labour which leads to overall savings . The tension curves and the spring like properties of high tensile wire remain taut throughout its life providing an effective, long lasting fence.
The forged X knot provides a stiffstay netting that will virtually stand up on its own. X Fence premium wire netting improves with age. At the sacrificial corrosive stage the X knot coating enables the wire to fuse and the knots become tighter. This gives X Fence real rigidity and strength.
Specifications
- Suitable for: Livestock
- Compatible with Clipex posts: Yes - Clipex Standard posts
- Overall Height: 80cm / 800mm
- No. of line wires: 8
- Distance between vertical wires: 15cm / 150mm
- Distance between horizontal wires: see mesh pattern above
- Wire Gauge 2.5mm alu/zinc coated high tensile wire throughout
- Horizontal wires tensile strength: 1235/1550 N/mm²
- Vertical wires tensile strength: 850/950 N/mm²
- Knot type: X knot
- Manufactured to BS EN 10223-5
- Exceeds BS EN 10244 Class A
- Wire produced to BS 4102
