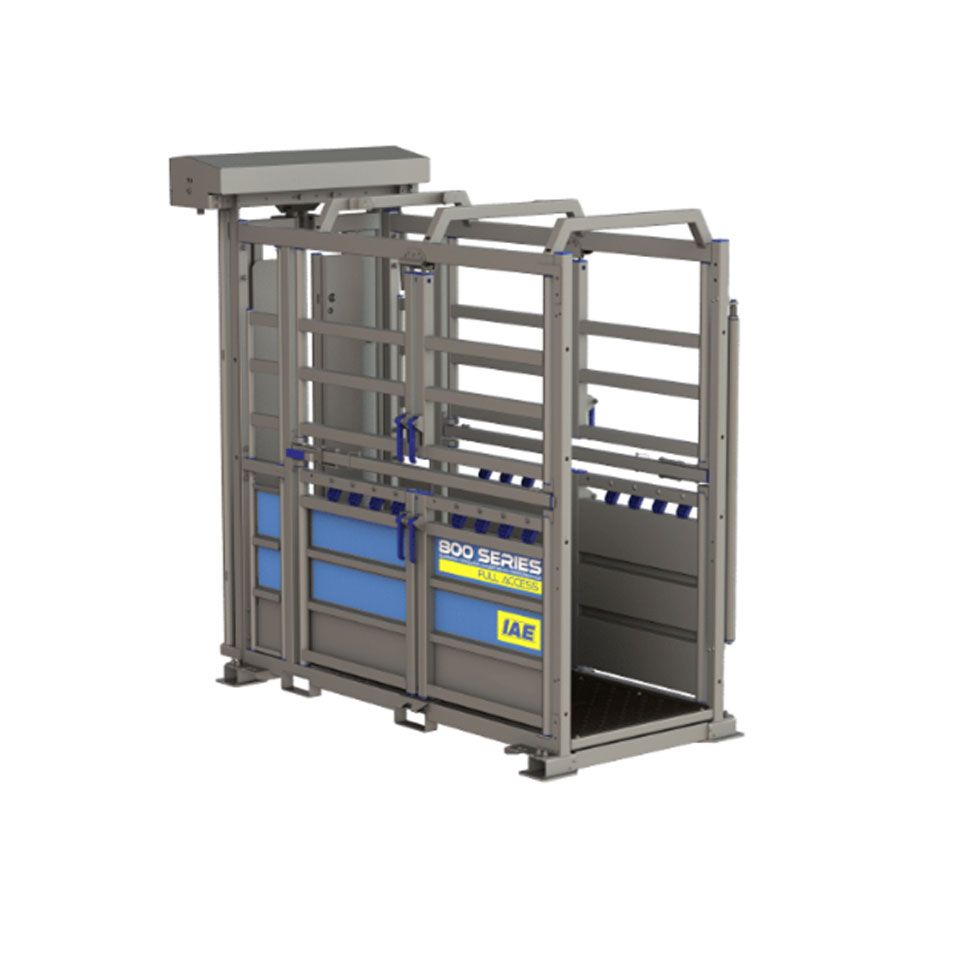

A800 Full Access Cattle Crush

Where the need for access outweighs a squeeze requirement the A800 Full Access gives an incredibly robust, self-locking crush with excellent access to all areas of the cattle’s body. 72 Acoustic Dampening Points (ADP) ensure a calm and quiet working environment, helping you to improve your throughput and complete routine handling tasks quicker.

Automatic Yoke

We have revolutionised the self-locking yoke with our patented one touch reset system. Including permanently synchronized doors, the fully baffled yoke is guaranteed to ensure effective capture even when the load distribution is uneven. The yoke has seven pre-set widths allowing for a large range of cattle sizes to be catered for and can be set up left or right hand. Acoustic Dampening Points (ADP) integrated into the mechanism significantly help to dampen vibrations and reduce noise.

Features -

• Patented one touch yoke reset allows all operations to be carried out intuitively with one handle.
• Unique gear synchronized yoke doors ensure effective locking even with uneven cattle load distribution.
• Full length baffled yoke features full length straight bars to reduce the risk of choking if an animal goes down and eradicate leg traps.
• Integral ADPs to reduce noise > 7 Width settings from 100mm to 240mm to suit a wide range of cattle.
• Full Access Body

Compatible with both of our premium 800 Series Yokes, the Full Access Body takes Suckler bodies to the next level. Where access is paramount and a squeeze mechanism is not required it is ideal for suckling calves, weighing, TB testing and a range of general procedures. Containing 68 Acoustic Dampening Points (ADP) for serious noise reduction, the full access design has four access doors per side and a quick release cross bar for handler safety. The body has been widened to 760mm and the internal height has been increased to over 1900mm giving space for the largest of cattle. TB access doors are fitted as standard to both sides of the body and fully baffled yoke doors help to reduce the animal’s peripheral vision when in the working zone, making vet treatments safer for both handler and cattle. A 10mm thick, deep profile rubber floor gives excellent grip, even in wet conditions to give cattle stability, confidence and to reduce noise.

Features -

• Superior access to the cattle’s flanks
• 68 ADPs to give a quiet, calm handling experience for handler and cattle
• 10mm thick, deep profile floor
• TB Access doors
• Ratchet backing up bar
• Full access doors
• Integrated lifting and load bar points as standard
• Compatible with sliding gate or extension
• Compatible with foot trimming kit
