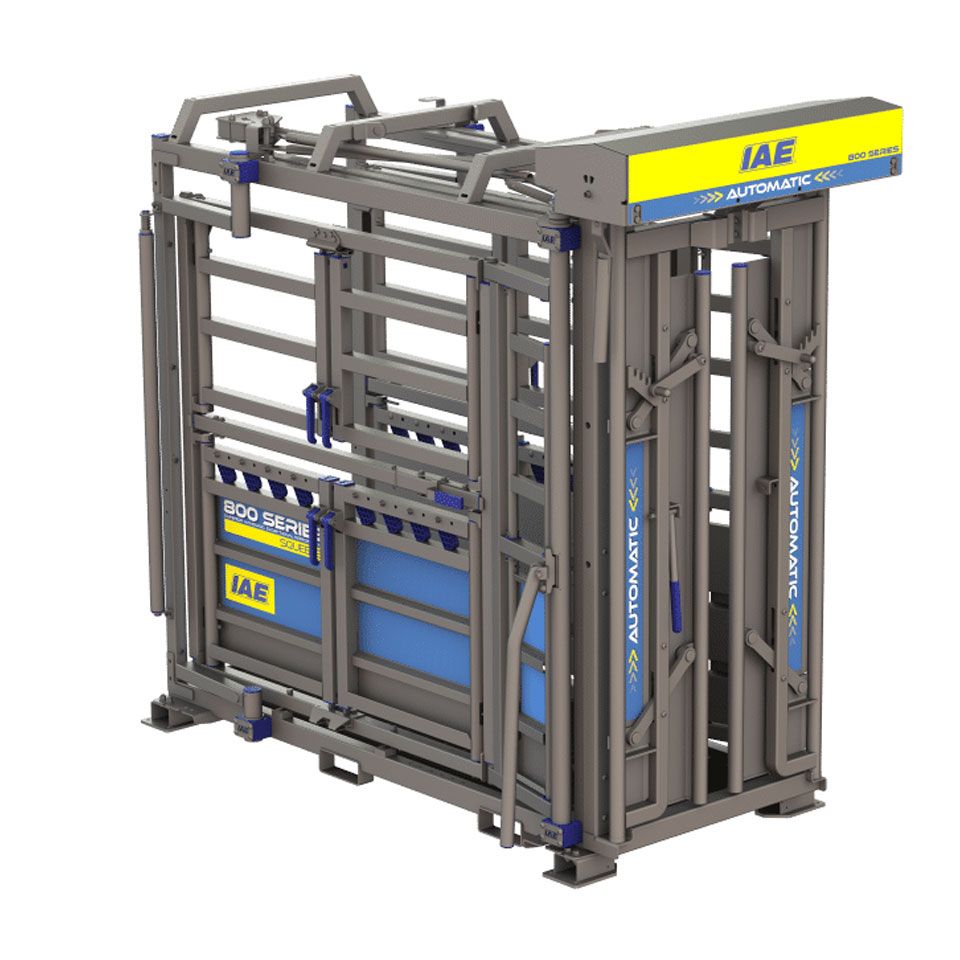

A800 Squeeze Crush

The A800 squeeze combines our revolutionary Automatic yoke with the 800 Series Squeeze body. A combination of 81 Acoustic Dampening Points (ADP) ensures a quiet, secure environment that outperforms many of the self-locking crushes in the marketplace.

Automatic Yoke

We have revolutionised the self-locking yoke with our patented one touch reset system. Including permanently synchronized doors, the fully baffled yoke is guaranteed to ensure effective capture even when the load distribution is uneven. The yoke has seven pre-set widths allowing for a large range of cattle sizes to be catered for and can be set up left or right hand. Acoustic Dampening Points (ADP) integrated into the mechanism significantly help to dampen vibrations and reduce noise.

Features -

• Patented one touch yoke reset allows all operations to be carried out intuitively with one handle
• Unique gear synchronized yoke doors ensure effective locking even with uneven cattle load distribution
• Full length baffled yoke features full length straight bars to reduce the risk of choking if an animal goes down and eradicate leg traps
• Integral ADPs to reduce noise > 7 Width settings from 100mm to 240mm to suit a wide range of cattle

Squeeze Body

Compatible with both of our premium 800 Series Yokes the Squeeze Body is the pinnacle of IAE crush body design; containing 77 Acoustic Dampening Points (ADP) it’s the quietest body IAE have ever produced. The ergonomic, lever operated manual squeeze mechanism has an operating range between 285mm and 760mm, designed to calmly and safely restrain cattle. The friction break immediately locks the width of the body when the operating lever is released regardless of inward or outward movement. TB access doors are fitted as standard to both sides of the body and fully baffled yoke doors help to reduce the animals peripheral vision when in the working zone, making vet treatments safer for both handler and cattle. The sleek squeeze mechanism means that you’ll still get great access to the animals flanks, with 4 fully opening quarter doors and a removable quick release cross bar. A 10mm thick, deep profile rubber floor gives excellent grip, even in wet conditions to give cattle stability, confidence and reduce noise.

Features -

• Ergonomic squeeze to safely restrain a range of cattle sizes
• Where it stops it locks squeeze technology
• 77 ADPs to give a quiet, calm handling experience for handler and cattle
• 10mm thick, deep profile floor
• TB Access doors
• Ratchet backing up bar
• Full access doors
• Integrated lifting and load bar points as standard
• Compatible with sliding gate or extension
• Compatible with foot trimming kit
