Made to order item with longer lead time

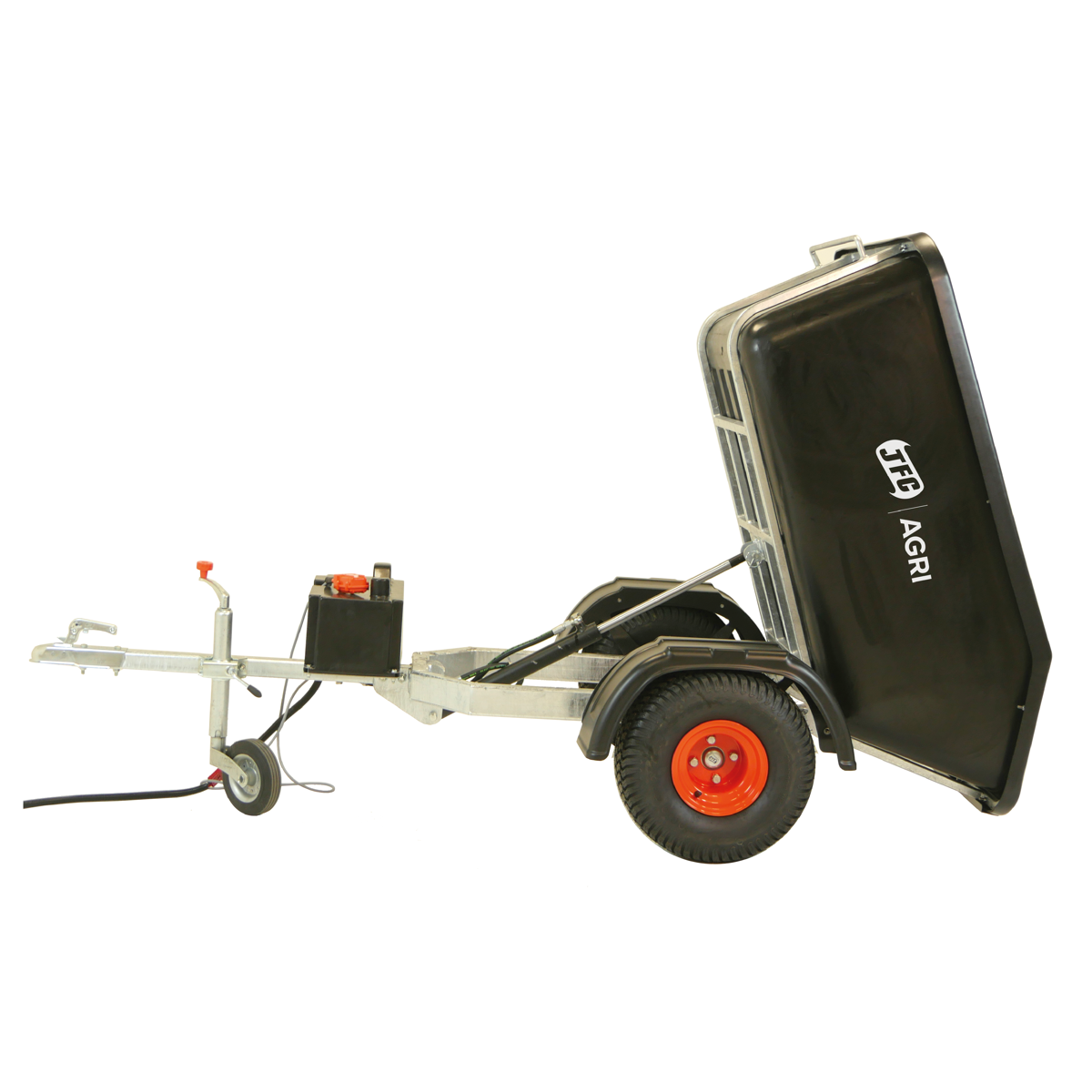

JFC Hydraulic ATV Trailer

Product Code
JFCHTL
  • 500L Capacity with hydraulic tipping mechanism
  • Strengthened rugged axle
  • 4 Ply off road tyres and mud guards

See full description

Delivery is free on orders over £420 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £420, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

The JFC Hydraulic ATV trailer is particularly suited for All-Terrain-Vehicles (ATV) or Quad bikes. The trailer is fitted with two 4 Ply off road tyres, a galvanised chassis and an easy-to-use Hydraulic tipping mechanism, powered by your ATV or Quad bike. The heavy duty galvanised frame ensures the trailer is suited to harsh terrain.  Please note there is currently a 4-6 weeks lead time for this product.


Key features

    • Reinforced heavy duty galvanised chassis
    • Suitable for heavy loads up to 500kg
    • Tough & durable polyethylene body
    • Protective steel plate on front lip of body prevents damage on impact
    • Fitted with a lever ball hitch

12v Hydraulic power pack specifications

    • Fused at 60A
    • 800W Motor
    • 145 Bar Pressure
    • Working Load of 500Kg
    • 2 Litre oil capacity

Specifications

  • Length - 2195mm
  • Width - 1364mm
  • Height - 966mm
  • Capacity - 500L
  • Weight - 120kg
