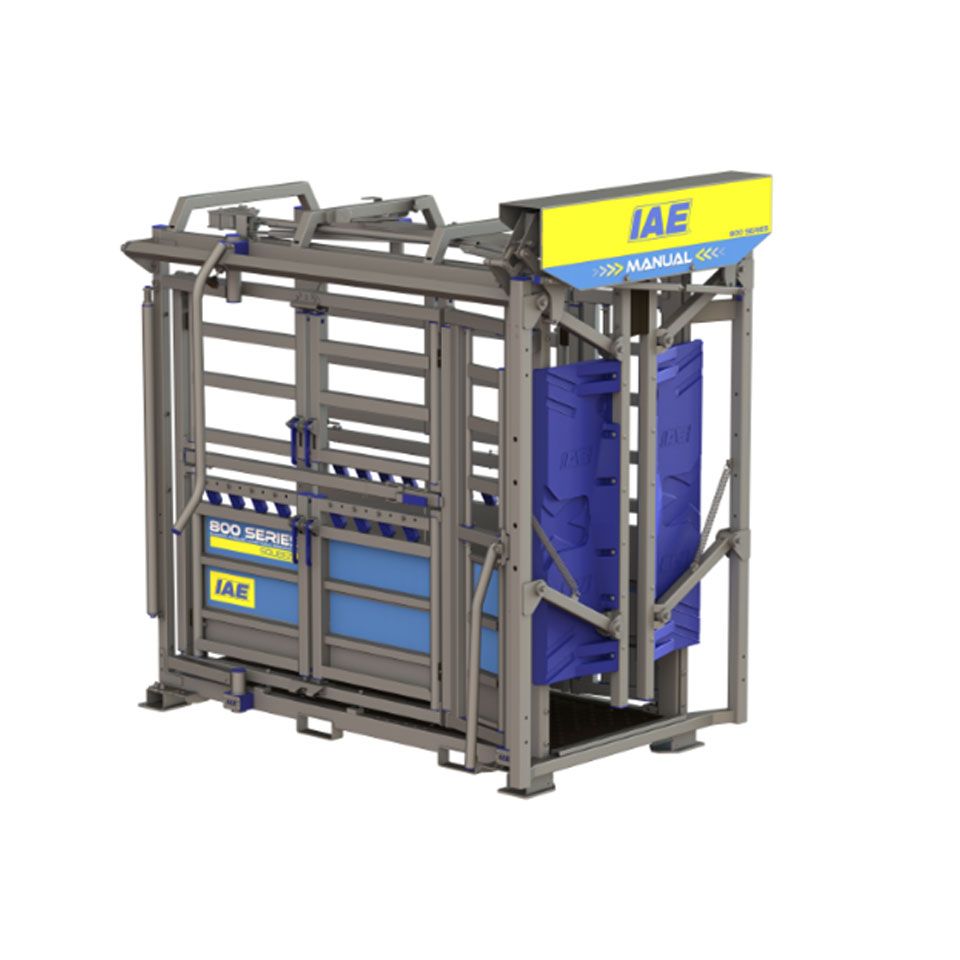

M800 Full Access Crush

Where a squeeze body is not required the M800 Full Access provides a heavy duty facility with unbeatable access. Supplied with the Manual yoke and the 800 Series Full Access body, there are over 75 Acoustic Dampening Points (ADP) to ensure a quiet, safe and efficient handling experience.

Manual Yoke

Where it stops it locks. Decades of experience have resulted in what we believe to be the perfect yoke. The spring balanced mechanism is operated with minimal effort, meaning reduced handler fatigue and significant efficiency gains. Unlike traditional yoke designs the friction lock scissor yoke does not require width pre-setting and will catch and hold cattle with a neck width anywhere between 100mm and 760mm, which means that whatever cattle you have in the race you can be confident that you’ll catch them. The bespoke molded yoke baffles safely guide cattle, reduce leg and head traps and in combination with our unique Acoustic Dampening Points (ADP) help to provide a quiet, low stress environment for you and your herd. For ultimate flexibility, the yoke can be operated anywhere along the length of the crush, which is supplied as a right-hand unit but can be converted to left hand operation quickly and easily.

Features:

• Ergonomic lever operation anywhere along the length of the crush
• Where it stops it locks; releasing the operating lever locks the yoke
• No pre-setting required; cattle of all size can easily be handled
• Lightweight yet tough polymer baffles are easily accelerated to ensure fast yoking and a safe environment for cattle and handlers
• Operation can easily be changed from right to left hand to suit on site requirements
• Solid pivot points and heavy-duty construction for longevity and stopping power
• Optional front gate for horned animals
• Full Access Body

Compatible with both of our premium 800 Series Yokes the Full Access Body takes Suckler bodies to the next level. Where access is paramount and a squeeze mechanism is not required it is ideal for suckling calves, weighing, TB testing and a range of general procedures. Containing 68 Acoustic Dampening Points (ADP) for serious noise reduction, the full access design has four access doors per side and a quick release cross bar for handler safety. The body has been widened to 760mm and the internal height has been increased to over
1900mm giving space for the largest of cattle. TB access doors are fitted as standard to both sides of the body and fully baffled yoke doors help to reduce the animal’s peripheral vision when in the working zone, making vet treatments safer for both handler and cattle. A 10mm thick, deep profile rubber floor gives excellent grip, even in wet conditions to give cattle stability, confidence and reduce noise.

Features -

• Superior access to the cattle’s flanks
• 68 ADPs to give a quiet, calm handling experience for handler and cattle
• 10mm thick, deep profile floor
• TB Access doors
• Ratchet backing up bar
• Full access doors
• Integrated lifting and load bar points as standard
• Compatible with sliding gate or extension
• Compatible with foot trimming kit

Specifications -

• Length: 2950mm
• Base Length: 2120mm
• Width: 860mm
• Internal Width: 760mm
• Height: 2250mm
• Weight: 600mm
