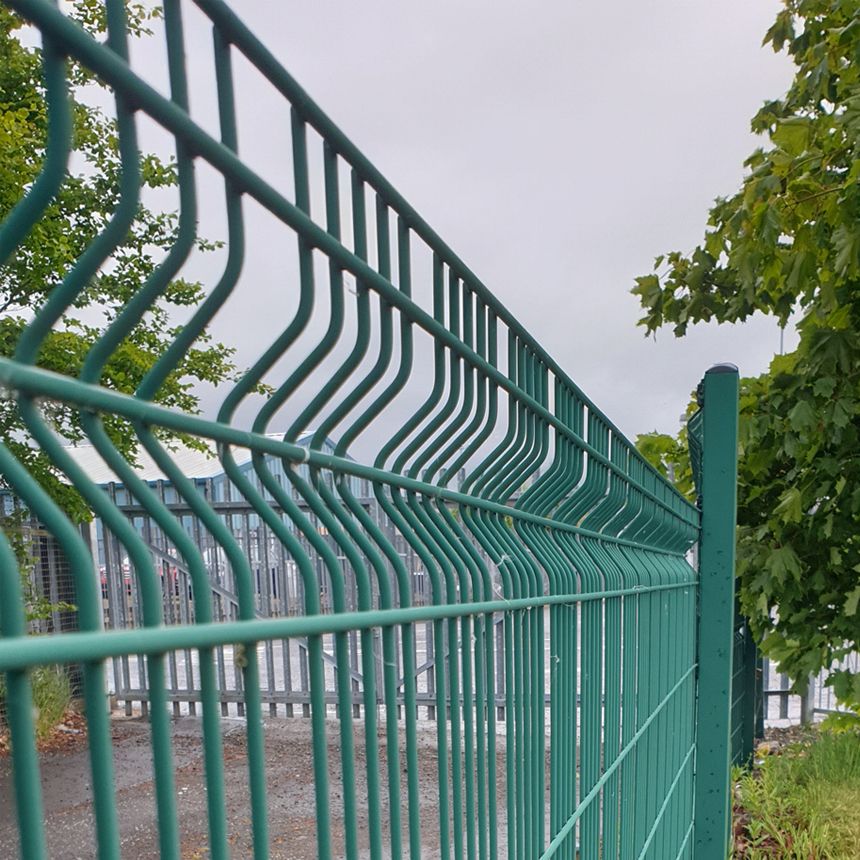

ZEBEX Z3 Mesh Panels

Product Code
ZEBEX Z3 Mesh Panels

Please email sales@mcveighparker.co.uk or call us for our best offer.

  • Choice of colours
  • Available in different heights
  • BS 1722 pt 14 compliant

See full description

Delivery is free on orders over £420 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £420, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

This is a special order product, please call us or get in touch online for full product details. Available in a range of heights the Zebex® Z3 panels are manufactured from 5mm (nom.) horizontal and 4mm (nom.) vertical wires. The attractive stripe effect is formed by a combination of 195mm x 24mm and 195mm x 40mm apertures. Pressed beams for additional lateral strength are also included within each panel.


Panels are supported on strong 60 x 60mm SHS posts which are supplied with steel fixing clips to hold them in place. Excellent visibility through the fence and the aesthetic appeal of Zebex® Z3 makes it suitable for a wide range of perimeter applications.


Suitable for :

  • Distribution centres
  • Commercial premises
  • Industrial units



  • Special order, call for full details
  • Base-plated post option available
  • M8 security fixings
  • Height - 1800mm
  • Wire Diameter - 4mm verticals & 5mm horizontals
  • Aperture Size - 195x40mm / 195x24mm
  • Panel Width - 3005mm



  • Post Size - 60x60 SHS
  • Post Centres - 3030mm
