Ashbourne 7 Rail Metal Field Gate

Product Code
Ashbourne Gates
  • Available in 14 widths
  • Available in both D Loop or Spring bolt locking styles
  • Suitable for most livestock and equine situations

See full description

Delivery is free on orders over £250 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £250, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

The Ashbourne is a quality field gate with box section ends, hole punched bracing and 50mm x 50mm box section hanging stile with sleeved gate eye collars for added strength. It has fully robotically welded joints and is hot dip galvanised for a long maintenance free life. Thanks to the exceptional strength to weight ratio, it is suitable for most livestock and equine situations and is frequently seen across the country.


Two 150mm fully adjustable 19mm shank x 19mm gate eyes are included with this gate.


Options available

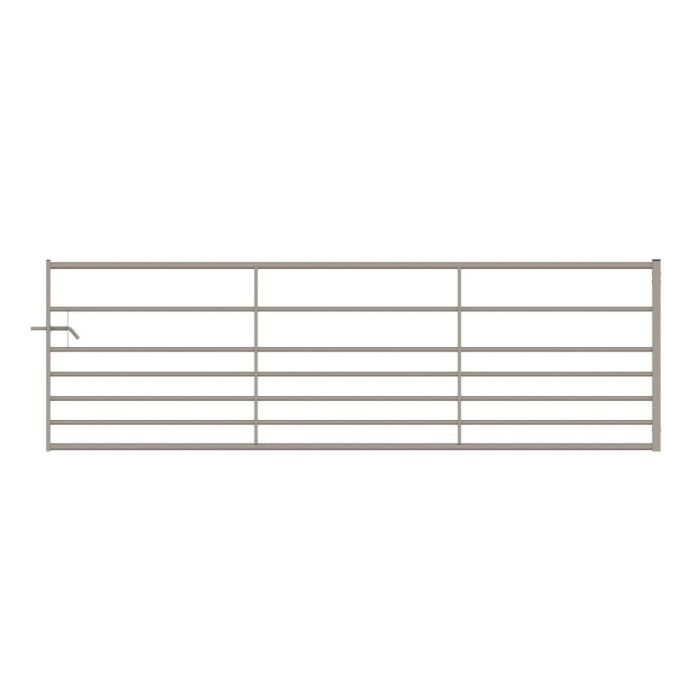

The Ashbourne Field Gate is available in 14 widths from 915mm to 4880mm with all sizes standing at 1143mm high. It’s also available in both D Loop or Spring bolt locking styles as demonstrated in the product image above.

Specifications

  • Hot dip galvanised to BSEN ISO 1461
  • Available from 900mm to 4880mm wide in 305mm increments
  • Top and bottom rails 43mm o/d tube
  • Intermediate rails 29mm o/d tube
  • 1143mm high (designed to hang at 1200mm)
  • Available in spring loaded sliding bolt and D loop fastening
  • 50mm x 25mm SHS latch end stile
  • 50mm x 25mm SHS Hole punched bracing
  • 50mm x 50mm SHS Hang end stile (Sleeved hanging stile for reinforced hanging ends)

Compatible posts

  • For gates up to 2.4m width – 88mm diameter hanging post
  • For gates over 2.4m width – 114mm diameter hanging post

Still not sure?

If you have any question about this product or its suitability, get in touch with our expert team if you need any help. We would love to hear from you.
