Heavy Bottom Rail Gate Set

The Heavy Bottom Rail Gate Set (SKU: KWG712HB5R) offers a robust solution for your fencing needs, ensuring durability and security. Designed with British rural landscapes in mind, this gate set helps secure livestock and provides an aesthetically pleasing boundary for your property. It comes complete with a heavy-duty wooden gate, treated for longevity, gate posts and galvanised fittings.

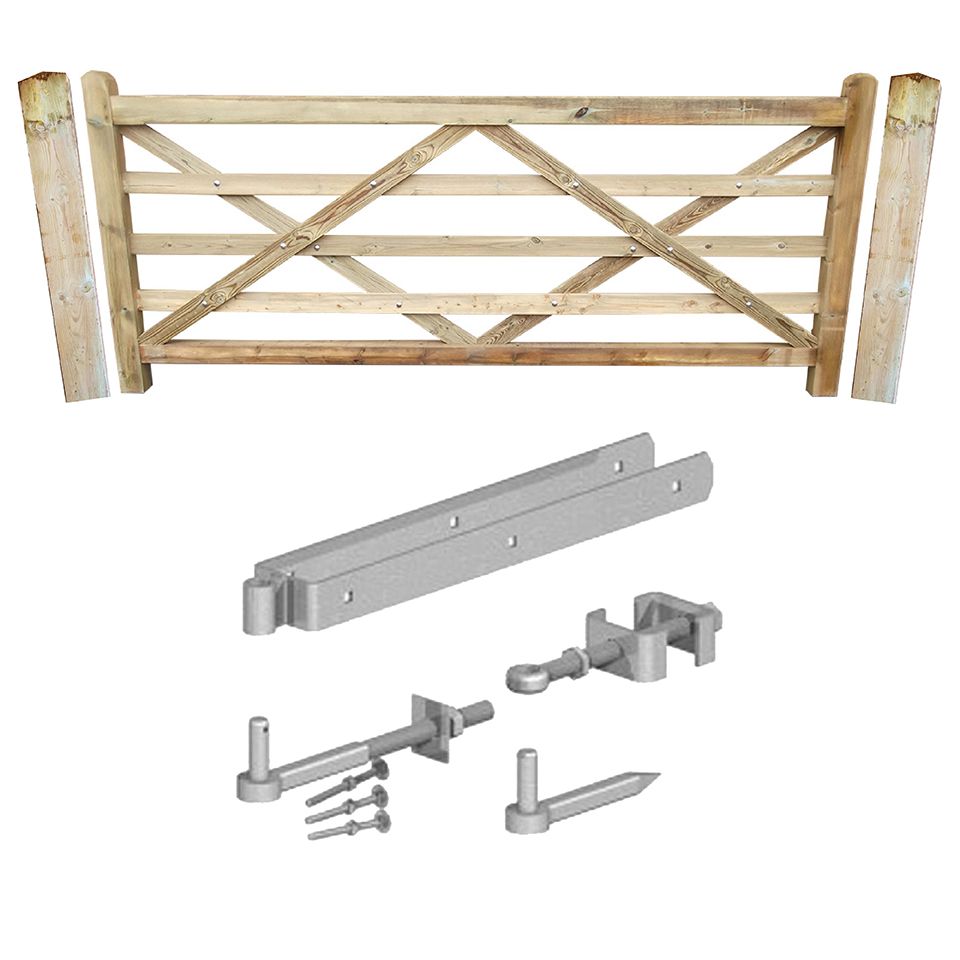

• 1 x 3660mm Heavy Bottom Rail Wooden Gate
• 1 x UC4 Redwood Gate Post 2400 x 175 x 175mm
• 1 x UC4 Redwood Gate Post 2100 x 175 x 175mm
• 1 x 600mm hinge set, complete with adjustable bottom hinge
• 1 x Spring Catch Set

Technical Specifications

• 5 or 6 rail gate (6 rail is a great option for dog owners)
• Suitable for electric gate installations
• Heavy bottom rail 70mm x 70mm
• Softwood - our responsibly sourced softwood gates are pressure treated with Tanalith E in a natural wood green for a long maintenance-free life. Further stain can be added to suit your preference or surroundings.
• Semi planed finish
• Diamond braced design provides added strength to the gate
• Morticed rails and cross bracing ex70mm x 20mm are all held together with zinc coated nuts and bolts
• Stiles are 95mm x 70mm both with rounded tops
• Timber kiln dried to 28% moisture content before treatment, guaranteed treatment to BS8417.
• Treated to UC4 our gate posts give a 15-year service life and feature a 4-way weathered pyramid top and flat bottom.
• All our timber is ethically sourced from forests throughout Europe. All the forests are responsibly managed and replanted after harvesting in line with FSC guidelines.

Applications

The Heavy Bottom Rail Gate Set is ideal for house, farm and estate entrances, paddocks, and any rural property requiring secure access. Its robust construction and optional electric gate suitability make it a versatile choice for various agricultural and domestic settings.

For more information or to discuss your specific requirements, please contact us or enquire today. Our team is here to provide expert guidance and support for all your fencing needs.

Frequently Asked Questions

How do you install the heavy bottom rail gate set?

Decide on location of the gate, opening in or outwards, hanging on the left or right, central, rear or front post hanging.

What are the maintenance requirements for the heavy bottom rail gate set?

Pressure treated for longevity, but you can add stain for a different appearance.

Why have a heavy bottom rail?

Provides additional strength and stability, especially useful for electric gate installations. Reduces warping.

What treatment is required?

Pressure treated with Tanalith E for a long, maintenance-free life.

What fittings are required?

Comes with a hinge set, adjustable bottom hinge, and spring catch set, bolts and screws.
