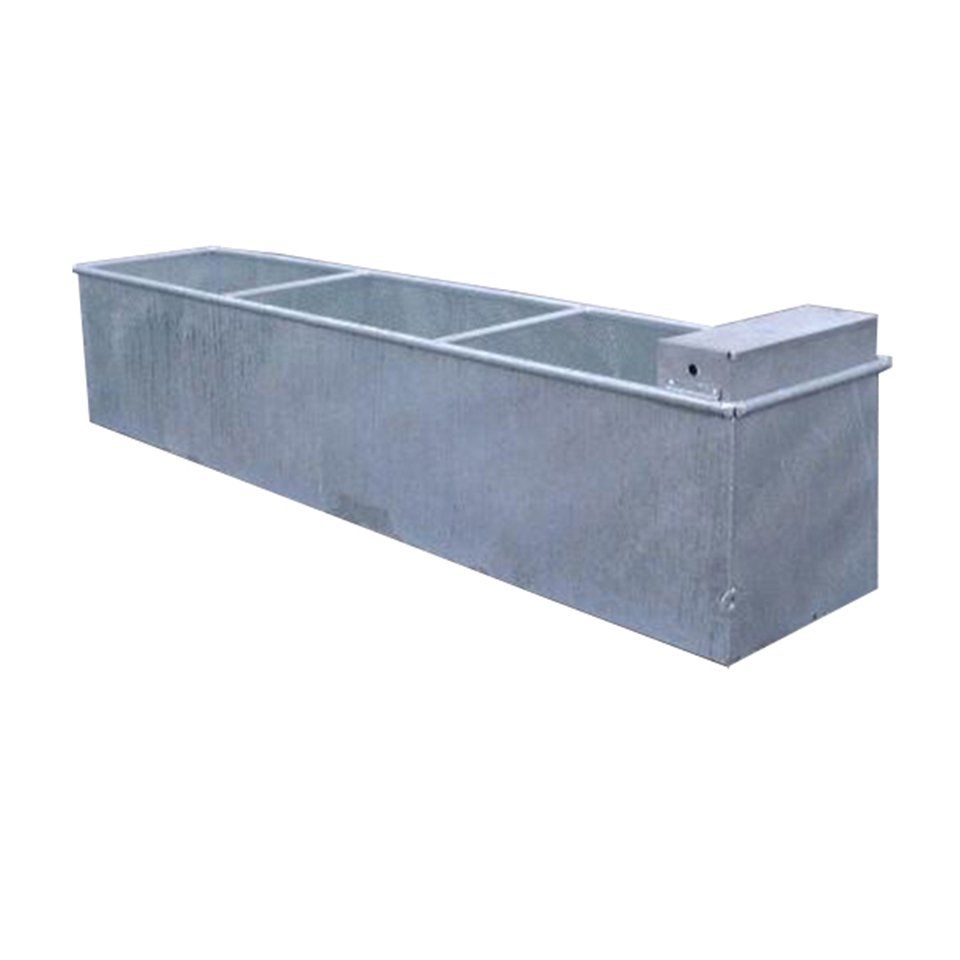

Large Livestock Water Trough (610mm Deep)

Product Code
Large Livestock Water Trough
  • Suitable for cattle and as attractive planters
  • Available in a range of lengths
  • 1.5mm flat steel, sheet folded, welded and then fully galvanised to BSEN ISO 1461

See full description

Delivery is free on orders over £250 within a 70 mile radius of our depots. For orders outside a 70 mile radius of our depots, delivery costs will apply. For orders under £250, delivery costs will apply.

Delivery costs start from as little as £5.99 but is dependent on the size and weight of your order. All delivery costs are clearly stated in stage 2 of the checkout, once you have entered your delivery postcode.

About product

These larger galvanised water troughs are ideal for larger livestock, dairy herds or where larger volumes of water are required such as allotments.

Options available

Our large water troughs are available in the following sizes: (all models are 600mm (2'0") wide x 610mm (2'0") deep).

  • 1200mm (4ft) long 4541tr (100 gallons) capacity - No horizontal cross brace
  • 1800mm (6ft) long 681ltr (150 gallons) capacity - One horizontal cross brace
  • 2400mm (8ft) long 980ltr (200 gallons) capacity - Two horizontal cross braces
  • 3000mm (10ft) long 1135ltr (250gallons) capacity - Two horizontal cross braces

For sheep and horses we stock the more traditional sizes including our Livestock Water Trough (405mm (1'4") deep) and our Sheep Water Trough (267mm (10.5") deep).


    • Roll top trough for added strength & stability
    • Drain plug & bung come as standard
    • Manufactured in 1.5mm flat steel sheet folded, welded and then galvanised to BSEN ISO 1461
    • Curved internal lip reduces the chance of livestock getting leverage to move the box
    • Three brackets hold service box firmly in place. Service box can be fitted at either end or central, ideal when separating paddocks. (Service box available separately).

Optional extras

Effectively support a water trough to the correct height for livestock to drink from. For our Large Livestock Water Trough (610mm Deep) we recommend our 600mm Concrete Trough Supports, 2 supports for up to 1800mm (6' ) troughs and 3 supports for larger sized troughs.


Please note - Service box for housing the ball valve assembly is available separately. Service box can be installed centrally or end fitted. Three wrap round brackets provide a strong fitting.


  • PDF/Video Block Identifier

Alternative text - include a link to the PDF!

Alternative text - include a link to the PDF!

Still not sure?

If you have any question about this product or its suitability, get in touch with our expert team if you need any help. We would love to hear from you.
