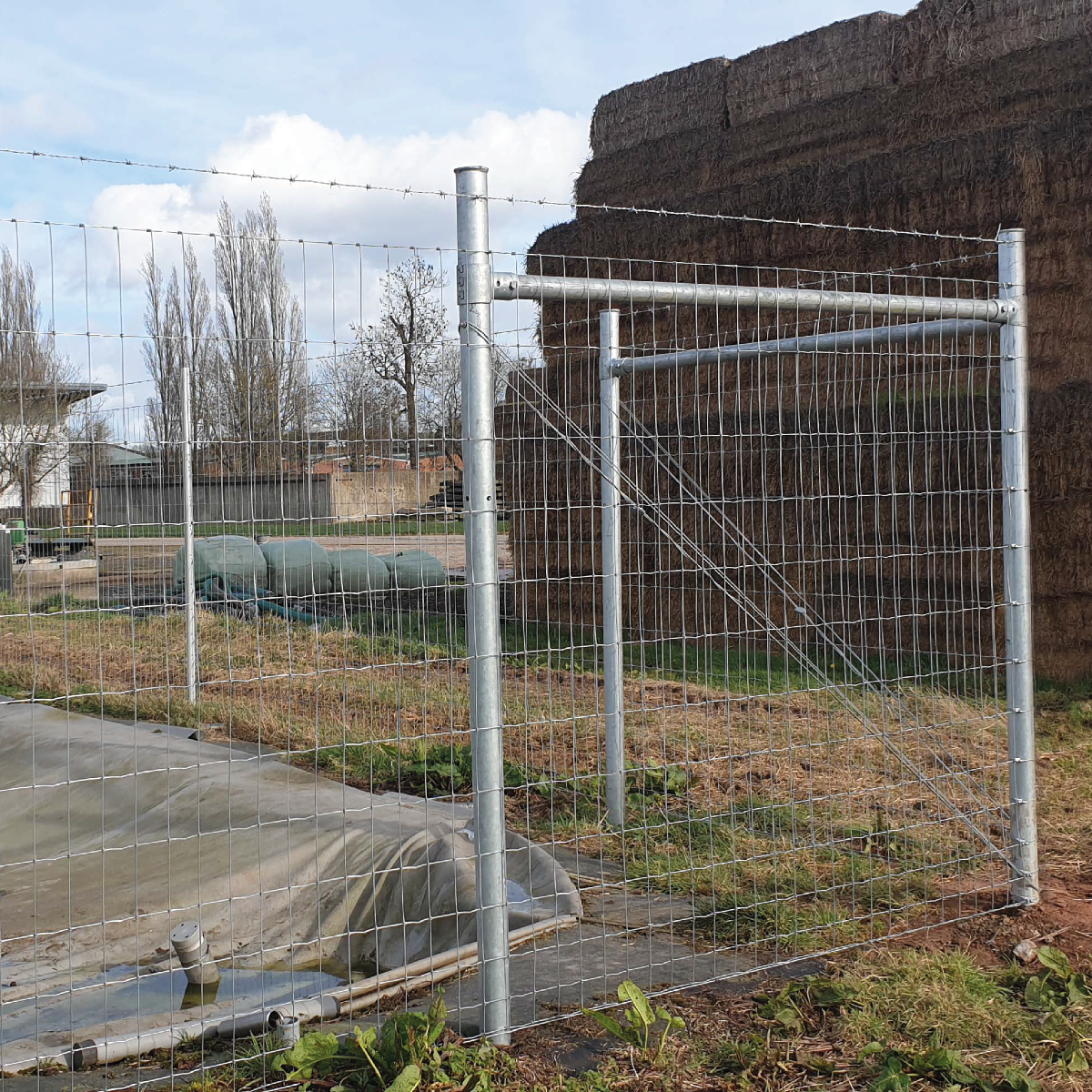

Triple X Deer Fence Box Corner/Two Way Strainer

New and Improved - Triple X Strainers are now 23% thicker.

Triple X strainers have been designed by McVeigh Parker, they are British made all steel hot dip galvanised strainers, with fully welded base and thrust plates, which give real resistance and greater holding in the ground, fully welded top cap and pre-drilled holes for ease of strut installation. The 3.0mm thick strainer allows them to be driven in hydraulically or mechanically. The two main strainer assembly designs are the angle/diagonal stay and the box/horizontal assembly. The type of strainer you choose will be dependent on the topography, soil type, fence height and purpose.

Installing a Triple X strainer could not be simpler, minimal components mean full installation in less than 5 minutes is possible. This system offers an excellent return on investment with its ease of installation and longevity.

Triple X strainers are proven in the field throughout the UK. Used by contractors, farmers and landowners alike, for both stock, deer and security fencing. Box strainer assemblies are more suitable for softer ground and high strains or taller fence designs. An additional diagonal strut can be added to the box strainer if required in even softer ground conditions.

This kit contains all you need for a 3.3m Triple X Deer Box Corner/Two Way Strainer.

Kit Includes

• 2 x GPAK3 Gripple looped cable 3mm x 4.5mm
• 3 x Triple X strainer 3.3m x 75mm dia welded plt
• 4 x Triple X Claw ribbed clamps 76/60mm c/w
• 4 x Tek Screws Heavy Steel 5.5 x 38mm 5pt ASF
• 2 x Galvanised Tube 60mm x 3.05 Strut tube

Specifications

Main Strainer

• Height – 3.3m
• Weight – 27.5kg
• Profile - 75mm dia x 4.0mm
• Pre-drilled and fully welded
• 4mm thick x 250mm thrust/base plates to reduce any movement
• Cylindrical hollow section aids easier driving in

Box Struts

• Profile – 60mm dia x 3mm
• Drilled/welded or mitre cut ready for instant use
• Weight - 14kg
