HT Hinge Joint Stock Fence HT8-80-22 100m
- Experts in our field since 1979
- Massive stock holding across our 8 nationwide depots
- Our own fleet of 50 vehicles delivers a fast and efficient service right across the country
TRADE VOLUMES
For resell or volume enquires get in touch now
Specification Sheets
Browse our selection of specifications sheets for more details on selected products. Find out more.
- The most popular high tensile lamb friendly pattern in the UK manufactured to BSEN 10223-5
- Retains its tension for the life of the fence, wire produced to BS4102
- Features XTREME reinforced coating exceeds BSEN 10244-2 Class A, lasts 3-4 times longer than commercial galv

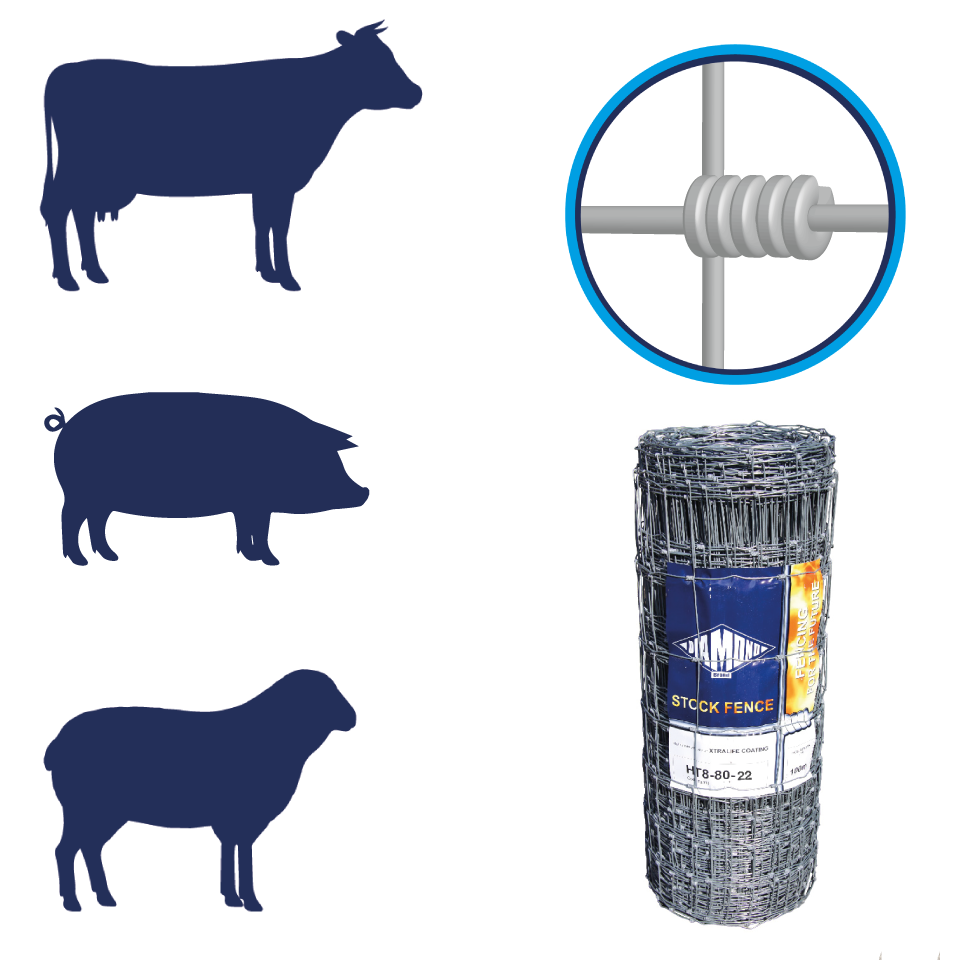

HT8/80/22 stock fencing is suitable for lambs, sheep, pig and livestock. This is fast becoming the most popular type of agricultural wire netting pattern for use with sheep and lamb fencing. This is due to the 220mm (9") vertical wire spacings which reduce head entrapment and ear tag loss.
Exceeding British Standards BSEN10244, the XTREME reinforced coating provides a protection that lasts 3-4 times longer than commercially galvanised stock fence. Steel starts to rust when in contact with oxygen and air humidity but the XTREME reinforced coating protects it against corrosion due to oxidation, which is superior to traditional galvanisation.
High tensile wire netting is up to 3 times stronger than traditional mild steel stockfence. Its spring like properties can be strained tighter, it will elongate less than 1% until taut.
Simply strain out 50% of the tension curves and you will have a fence that will perform in the varying climatic conditions and retain its tension throughout its lifetime. Due to the elasticity of the netting, intermediate stakes can be spaced further apart up to 3.5m terrain dependant, this will give you a saving in both material and labour costs, whilst providing you with a very strong long lasting fence.
Specifications
- Suitable for: Lambs, sheep, pigs and cows
- Overall height: 80cm / 800mm
- No. of line wires: 8
- Distance between vertical wires: 22cm / 220mm
- Distance between horizontal wires: Variable (see product image for mesh pattern)
- Wire gauge: 2.5mm high tensile wire throughout
- Knot type: Hinge joint
- Features XTREME reinforced coating, a protection that lasts 3-4 times longer than commercially galvanised stock fence
- Available roll lengths: 100m
Did you know?
A high tensile wire fence shall be strained and keep that tension for a minimum of 3 years without intervention.
- Typically the line wires in a high tensile fence should be strained between 125 - 150kg.
- Typically, high tensile barbed wire should be strained between 100-125kg.
- A mild steel wire fence shall be strained, checked annually and re-tensioned where necessary.
- Typically the line wire and barbed wires in a mild steel fence should be strained between 50-75kg.
