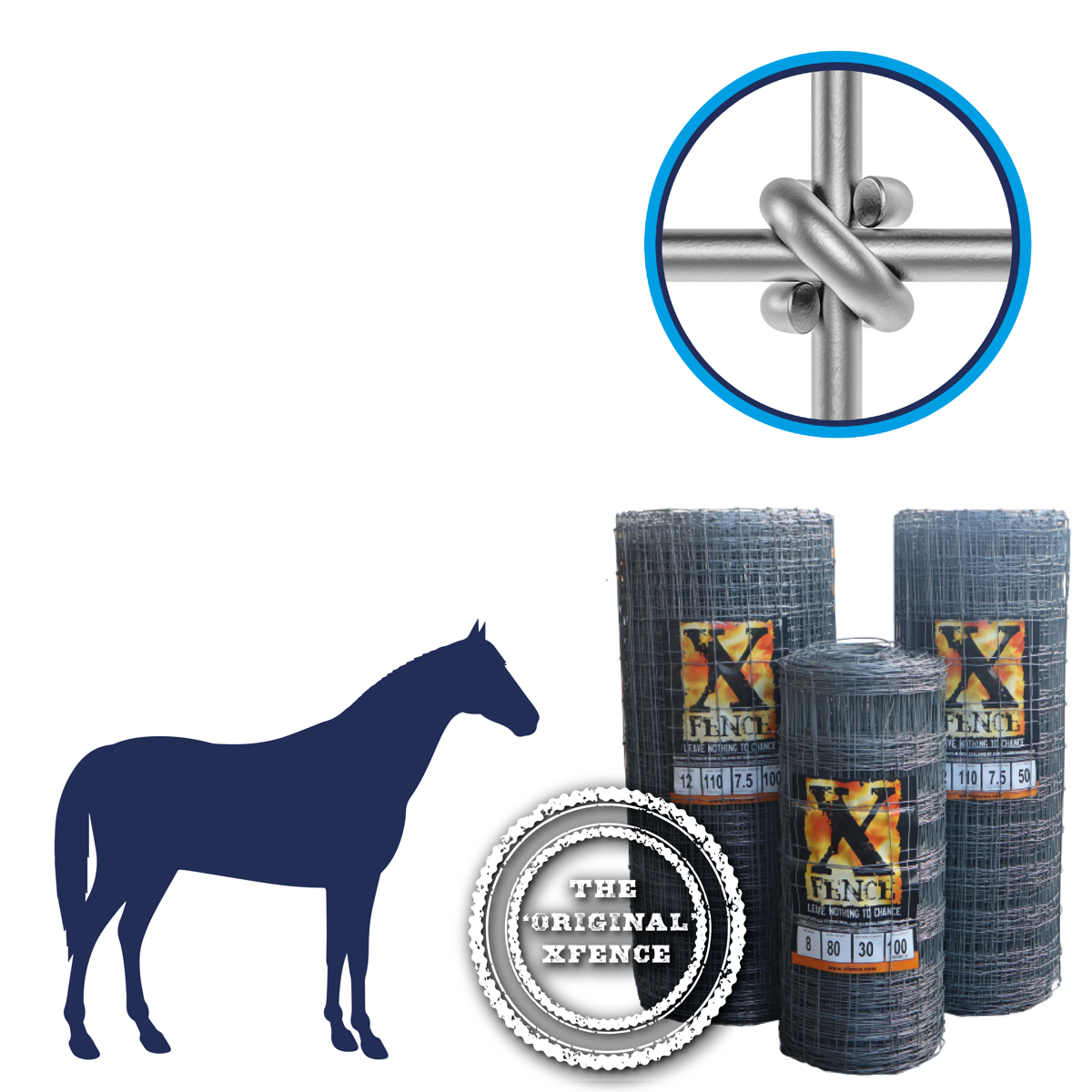

X™ fence® Equi-fence Standard XHT10-90-7.5

The X™ fence® Equi-fence Standard XHT10-90-7.5 is an entry-level yet premium horse netting solution. Designed to be cost-effective, it offers the advantages of a narrow mesh pattern, significantly reducing the risk of hoof entrapment. Its shorter height makes it an ideal barrier for small horses and ponies, seamlessly integrating with both existing and new post and rail fences.

• Cost-effective horse netting with premium features.
• Narrow mesh pattern helps reduce hoof entrapment risk.
• Suitable for small horses and ponies.
• Compatible with existing or new post and rail fences.
• One-piece vertical wire allows spacing of stakes up to 5m apart, saving on both posts and labour.
• Tension curves and the high tensile wire maintain taut in climatic changes.
• Forged X knot provides stiffstay netting with enhanced rigidity and strength which increases over time.

Technical Specifications

• Suitable for: Small Horses / Ponies
• Compatible with Clipex posts: No
• Overall Height: 90cm / 900mm
• No. of line wires: 10
• Distance between vertical wires: 7.5cm / 75mm
• Distance between horizontal wires: see mesh pattern above
• Wire Gauge: 2.5mm alu/zinc coated high tensile wire throughout
• Horizontal wires tensile strength: 1235/1550 N/mm²
• Vertical wires tensile strength: 850/950 N/mm²
• Knot type: X knot
• Manufactured to BS EN 10223-5
• Exceeds BS EN 10244 Class A
• Wire produced to BS 4102

Applications

The X™ fence® Equi-fence Standard XHT10-90-7.5 is specifically designed for use with small horses and ponies. It offers a safe and secure barrier that can be easily integrated into existing fencing systems, making it ideal for equestrian facilities and rural properties.

For further assistance or to make an enquiry about the X™ fence® Equi-fence Standard XHT10-90-7.5, please contact us. We are here to ensure you have the best fencing solution tailored to your needs.

Frequently Asked Questions

What post spacing do i need for Equi X fence?

You can space intermediate stakes up to 5 metres apart.

What is the X™ fence® Equi-fence Standard XHT10-90-7.5 made of?

It's made of 2.5mm thick primary metals only, alu/zinc coated high tensile wire throughout.

Is the X™ fence® Equi-fence Standard XHT10-90-7.5 easy to install?

Yes, fewer stakes mean less labour, making installation easier. The one peice vertical wire acts like its own intermediate almost allowing the netting to be self supporting.

What makes the X™ fence® Equi-fence Standard XHT10-90-7.5 the best choice for horse fencing?

It reduces hoof entrapment risk and offers long-lasting, cost-effective protection.
