Horse Fencing

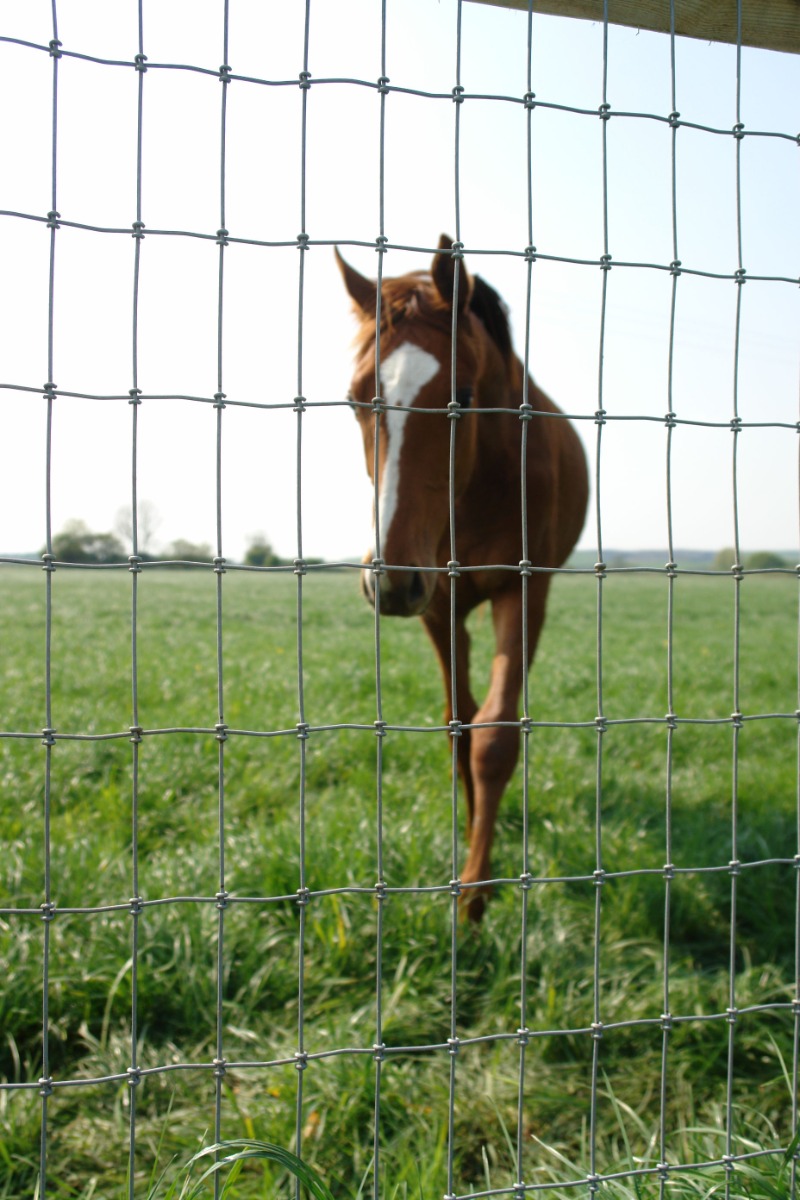

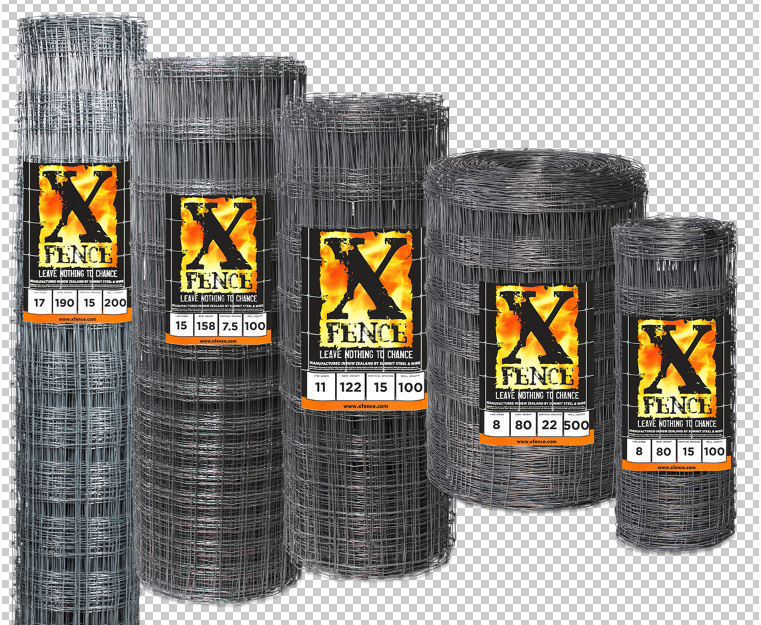

• X fence premium horse netting

  X fence fabricated fencing systems are world renowned for their durability and market leading quality.

  Using only the highest quality raw materials in their state-of-the-art production facility, X fence has been tried and proven in the harshest conditions and most testing applications worldwide.

  • Stronger wire
  • Premium coating
  • Easier installation
  • Longer maintenance free life


  The strong unobtrusive X knot not only provides an excellent joint, but it’s smooth surface also provides a safe environment for horses. The alu/zinc coating will last 3-4 times longer than galvanised wire. Five sizes to choose from, all with smaller mesh sizes, reducing the risk of injury or hoof entrapment.

• What separates X™ fence from the rest?
  • X fence is the original X knot stiffstay product
  • Only primary metal used, which means you get consistent tensile strength every time
  • Every roll comes with 450mm pre-stripped ends, which make tying off easier and quicker
  • Alu/zinc coated which gives 3-4 times longer life than standard galvanised products
  • The alu/zinc coating also makes the wire more ductile, easier to work with and won’t crack when tying off, which can happen with some heavy galvanised products
  • X fence have years of experience in producing a premium product, having this knowledge has enabled them to apply the correct pressure on the knots which reduces the wire snapping at the knots when tying off which can happen with similar products
  • Guaranteed meterage
  • Higher tensile strength than some cheaper heavy galvanised products helps retain tension over the life of the fence
  • Non-abrasive knot, prevents hide damage
  • The British Standard BSEN 10244-2 coating lists a sacrificial zinc coat of 230 grm‐2, X fence exceeds these standards with a Alu/Zinc alloy coating which offers an extended life protection
  • X fence exceeds European Standards for strength and galvanisation and is manufactured to BSEN 10223-5

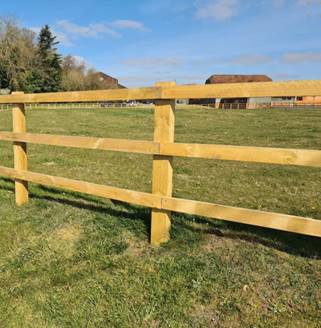

Timber post and rail is an iconic sight in the British landscape, both attractive and functional and often used for paddock fencing.

• Chestnut

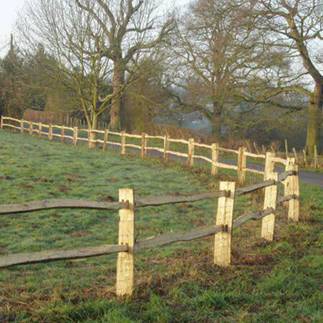

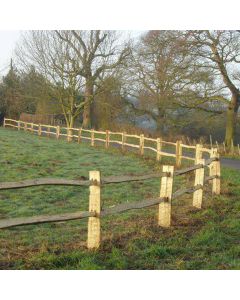

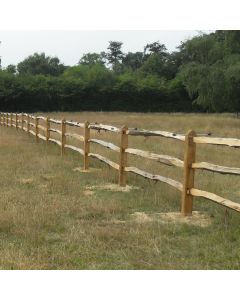

  This is a traditional and durable type of fence construction that uses cleft (split) chestnut of irregular shapes which give it a unique handcrafted rustic appearance. Produced from sustainable coppiced UK woodlands. For those looking for a more symmetrical appearance combine sawn morticed posts with cleft rails. Rails - 2.7m x irregular profile of approx. 325-350mm girth , scarf ended. Chestnut Posts – 2.0m x 180-210mm cleft face, twin morticed to suit two or three rail. Chestnut 2.1m x 125mm x 100mm, twin morticed to suit two or three rail. Sawn treated.

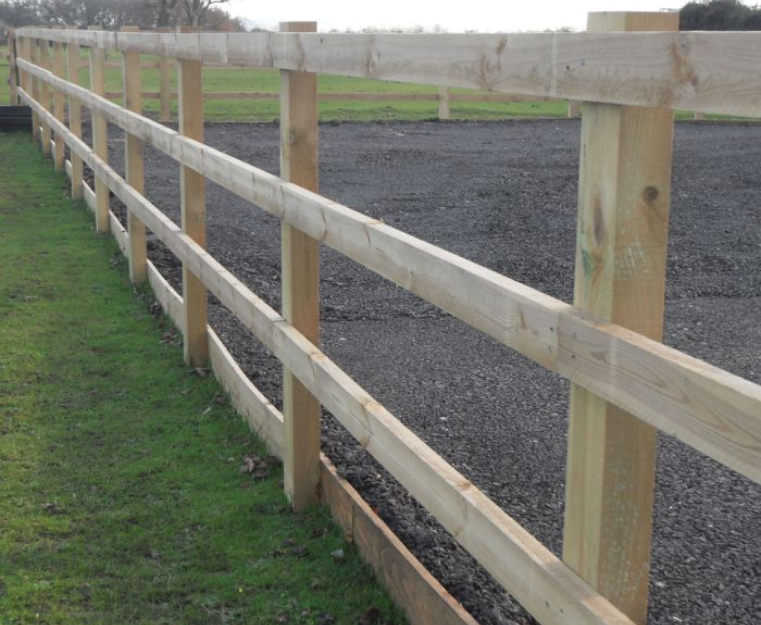

• Sawn

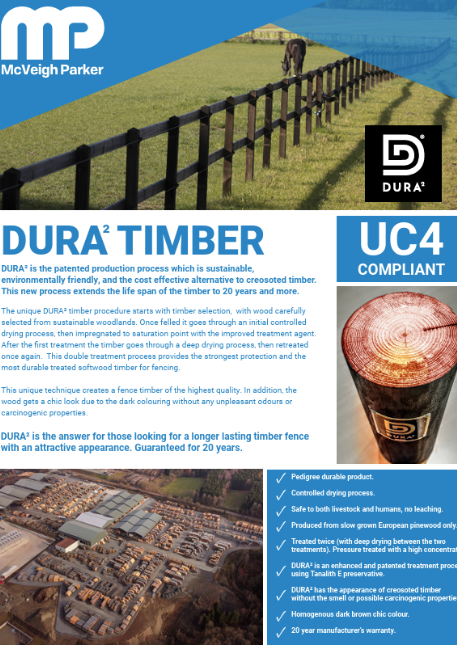

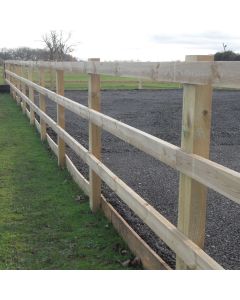

  Sawn (Motorway) Post & Rail Sawn finish timber most commonly seen along motorways. Rails - 3.60m x 88mm or 100mm x 38mm or 47mm profile Posts – 1.8m, 2.1m, 2.4m x 125mm or 150mm x 75mm, four way pointed Available in pressure treated green, Pressure creosoted and DURA² (in select sizes) UC4 pine for all in ground contact timber.

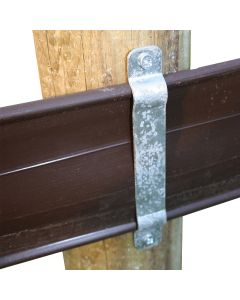

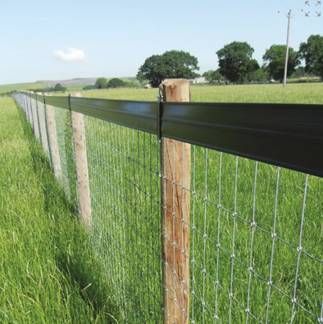

• Stud Rail

  Stud rail has long been used in the equestrian world as an ideal alternative to timber post and rail fencing. It is perfect for many agricultural and farm fencing needs. Once erected and strained up, stud rail fencing requires minimal upkeep and looks good for years. The rail is extruded from PVC with two strands of 2.5mm high tensile galvanised wire, moulded into the outer edges. Our stud rail comes in either brown or white. The range also includes stud rail clamps and stud rail roll. Stud rail fencing is attached to the brackets on the posts, allowing the fence to flex and slide under pressure, preventing injury to horse or damage to the fence. It can be easily moved, so is ideal for temporary paddock fencing. It can also be used as a top rail in conjunction with Equi-fence.

When it comes to protecting and managing horses, few things are as important as the fencing that surrounds their living spaces. Clipex Equine Fencing has emerged as a game-changer in this field, offering a cutting-edge solution that not only ensures the safety and security of horses but also emphasizes sustainability and ease of installation.

Clipex Equine Fencing is designed with a deep understanding of the unique needs of horses and their owners. It offers a blend of innovation and functionality that sets it apart from traditional fencing solutions. Let's delve into the features and benefits of Clipex Equine Fencing.

• Durability and Strength
• Safety and Security
• Easy Installation
• Adaptability
• Low Maintenance
• Sustainability
• Aesthetics
• Investment Value

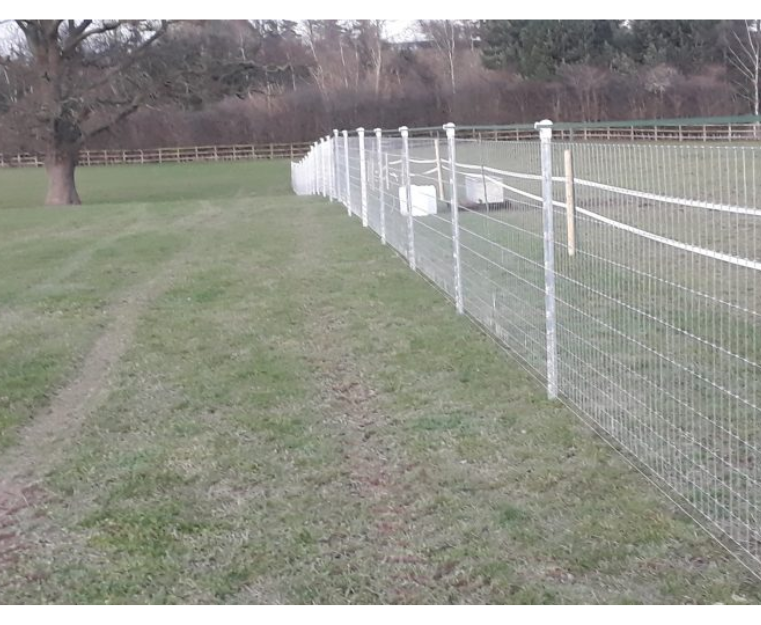

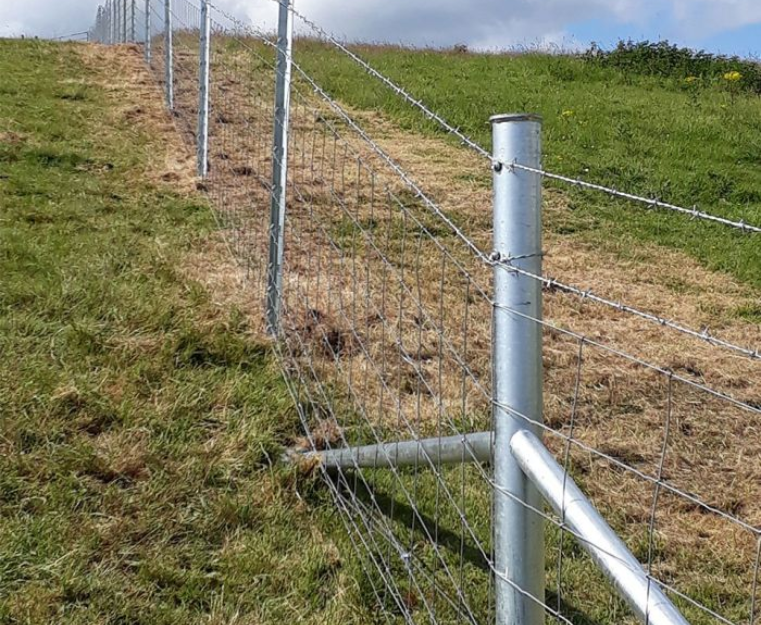

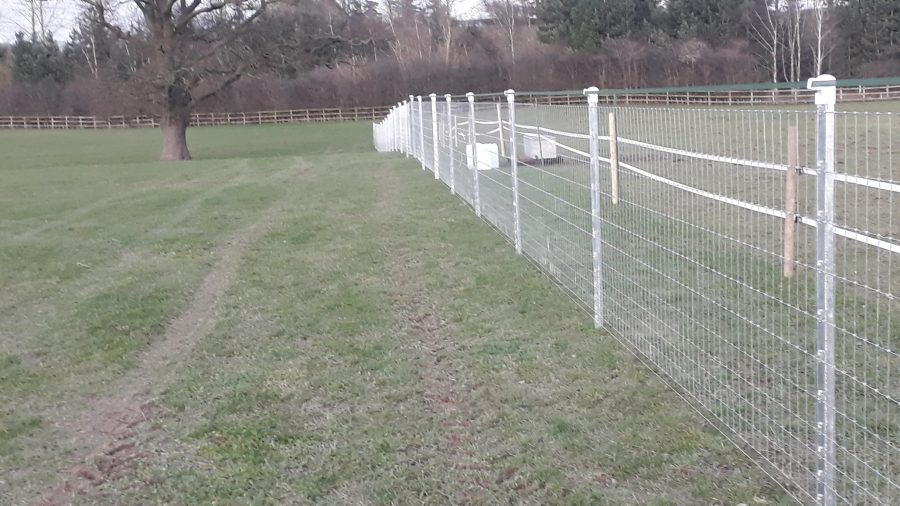

Triple X is the name we’ve given to an all-steel fencing system using the revolutionary Clipex ® steel post with X Fence premium wire netting and Triple X all steel strainers plus a choice of barbed, plain or electric wire. This is a fencing system like no other and can offer up to 50% cost savings over a more traditional fence. It is a fence with a life expectancy exceeding 30 years, takes significantly less time to erect, cutting both labour and machinery costs.

Long-life fencing solution

• Faster to erect and lighter to transport

• Lower carbon footprint

• Strong premium long-lasting wire netting

• Up to 50% lifetime savings

• Proven in the field Multi-award winning

• All netting lines securely held

• Used by many leading organisations

• No stapling required

• No fiddly loose components

• Minimal ground disturbance

• 30 year guarantee

• Strainers made in Britain

• Clipex posts



  Clipex® is the multi-award winning innovative galvanised steel post. Each post has pre-fixed clips which are designed to take all the horizontal wires of your chosen X Fence wire netting.  Each wire is held firmly in place with a spring-loaded clip, meaning there are no fiddly parts to lose or fit after erection. These clips allow lateral flex, but very little vertical wire movement can happen, which is important when livestock start putting pressure on the fence.  Each post has a pre-fixed anti-lift plate below ground level to prevent lifting in soft or undulating ground. Clipex posts are hot dip galvanised and independently tested in the UK, exceeding British Standard coating recommendations.

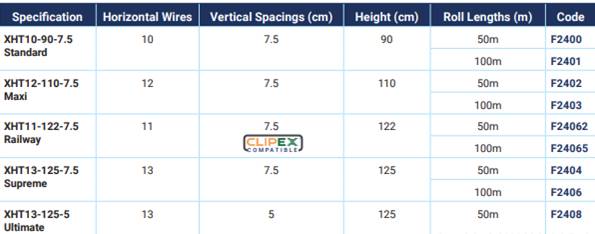

  For equine fencing we recommend the Clipex Cattle/Railway post.  It is a 2.0m long 13 clip post, designed to suit the X Fence premium XHT11-122-7.5 horse netting. All eleven lines will be clipped with one top row of barbed, electric or plain wire plus one row of plain or barbed wire as a base line.

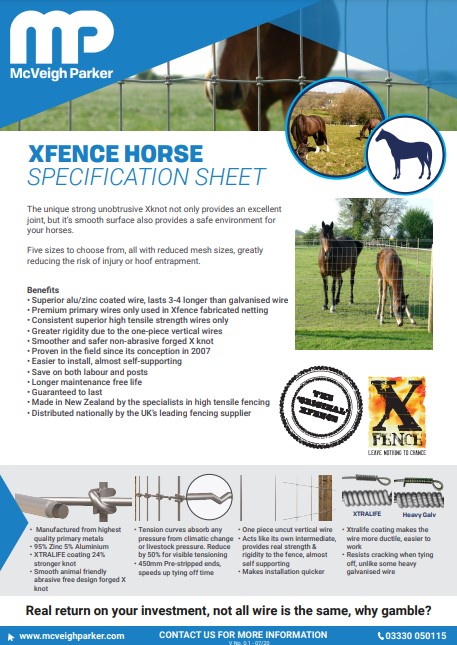

• X fence premium horse netting



  X fence fabricated fencing systems are world renowned for their durability and market leading quality.

  Using only the highest quality raw materials in their state-of-the-art production facility, X fence has been tried and proven in the harshest conditions and most testing applications worldwide.

  • Stronger wire
  • Premium coating
  • Easier installation
  • Longer maintenance free life

  The strong unobtrusive X knot not only provides an excellent joint, but it’s smooth surface also provides a safe environment for horses. The alu/zinc coating will last 3-4 times longer than galvanised wire. Five sizes to choose from, all with smaller mesh sizes, reducing the risk of injury or hoof entrapment.

  What separates X™ fence from the rest?
  X fence is the original X knot stiffstay product
  Only primary metal used, which means you get consistent tensile strength every time
  Every roll comes with 450mm pre-stripped ends, which make tying off easier and quicker
  Alu/zinc coated which gives 3-4 times longer life than standard galvanised products
  The alu/zinc coating also makes the wire more ductile, easier to work with and won’t crack when tying off, which can happen with some heavy galvanised products
  X fence have years of experience in producing a premium product, having this knowledge has enabled them to apply the correct pressure on the knots which reduces the wire snapping at the knots when tying off which can happen with similar products
  Guaranteed meterage
  Higher tensile strength than some cheaper heavy galvanised products helps retain tension over the life of the fence
  Non-abrasive knot, prevents hide damage
  The British Standard BSEN 10244-2 coating lists a sacrificial zinc coat of 230 grm‐2, X fence exceeds these standards with a Alu/Zinc alloy coating which offers an extended life protection
  X fence exceeds European Standards for strength and galvanisation and is manufactured to BSEN 10223-5





• Triple X strainers

  Triple X Strainers have been designed by McVeigh Parker and are proven in the field throughout the UK. Used by contractors, utility companies, farmers and landowners for stock, deer and security fencing. Our British made strainers are a very good alternative to more traditional timber strainers, lasting much longer and saving significant installation and labour time. When teamed up with the Clipex® posts and our premium quality X Fence alu/zinc wire netting you have a fencing system that has a life expectancy of over thirty years.

  Benefits

  • Simple and quick installation in under five minutes

  • Cost-effective over the lifetime of fence

  • Guaranteed to exceed a 30 year life

  • Diagonal or Box strainer kits available to suit all terrain and soil

  • Only five components, easy to assemble, no fiddly parts to install or lose

  • Exceptionally strong, fully welded top cap, the thick-walled tubular strainer can be mechanically or hydraulically driven

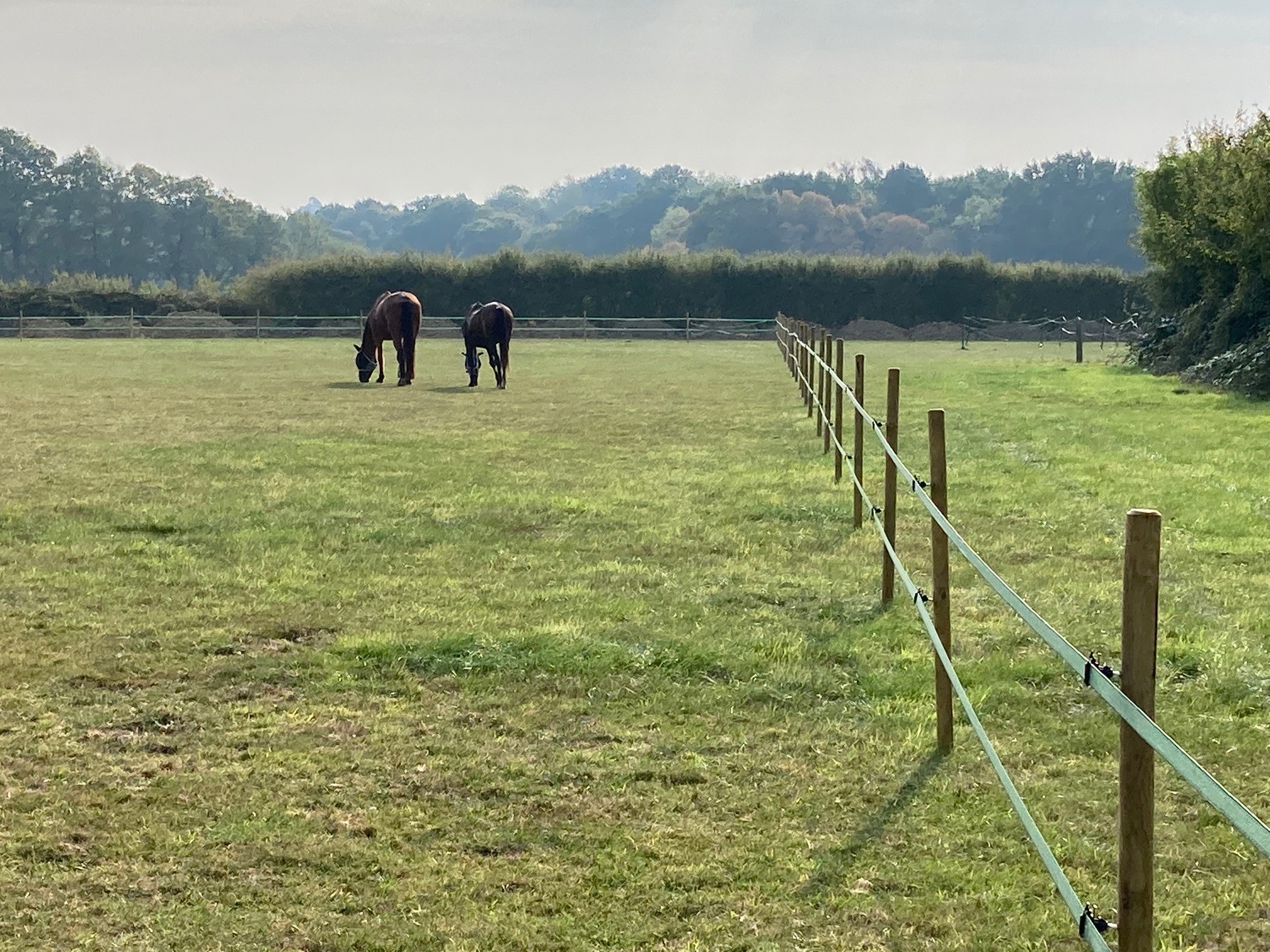

Our electric fencing range includes everything you need to set up a complete electric fencing run, from leading manufacturers including Gallagher and Strainrite. Electric fencing is used to protect paddocks and your post and rail. We supply PVC stud rail, Equifence hot line and our market leading X Fence horse netting. Combine any of these with UC4, DURA² or creosoted timber for a longer maintenance free life.

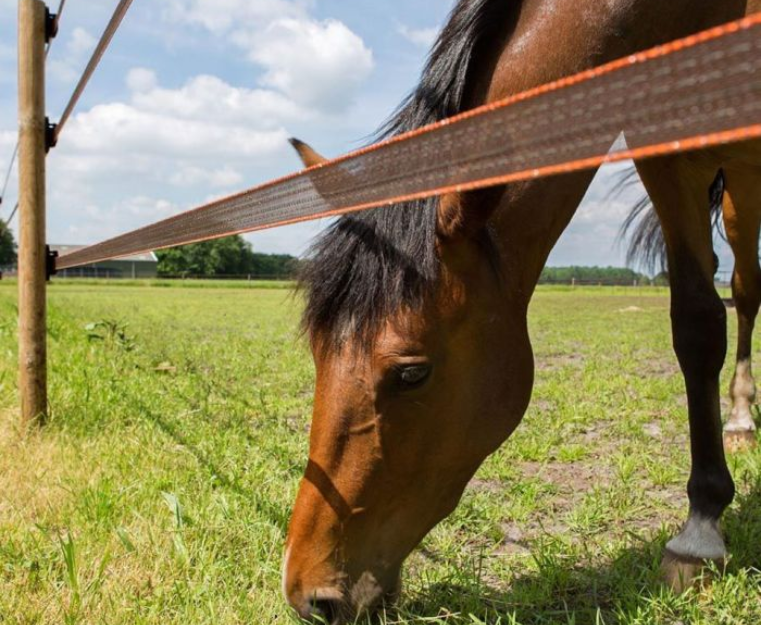

• Tape and Rope

  We offer stranded galvanised wire, polywire super, electric rope coil, white electric tape and reinforced tape



• Insulators

  As part of our electric fencing offering, we stock electric fencing insulators for use with metal and plastic posts. They are impact resistant and can be used with super poly wire, electric rope and stranded wire. Shop below for a variety of electric tape and wire insulators.

• Stakes

  Ideal for erecting temporary or permanent electric fencing,

• Energisers

  McVeigh Parker stock a range of electric fence energisers including battery powered, mains and solar energisers for your electric fence. Our electrical power units are suitable for fencing livestock including horses and cattle in fields or paddocks. Our electric fence energisers are sturdy and easily transportable; suitable for long-term use outside. Solar panel fence energisers are powerful, with an integrated solar panel and battery, and some models come supplied with a seven-year premium warranty.,

Our range of horse gates include both metal and timber options with our timber horse gates also offering a reinforced heavy top and bottom rail option for added strength. All timber horse gates are semi-planed finish and feature galvanised fittings to provide a long lasting life. We also stock a range of bridle gates allowing easy access for horse and rider. The all in one H frame design of the metal gates make installation very easy, it also prevents future movement, reducing any future maintenance.

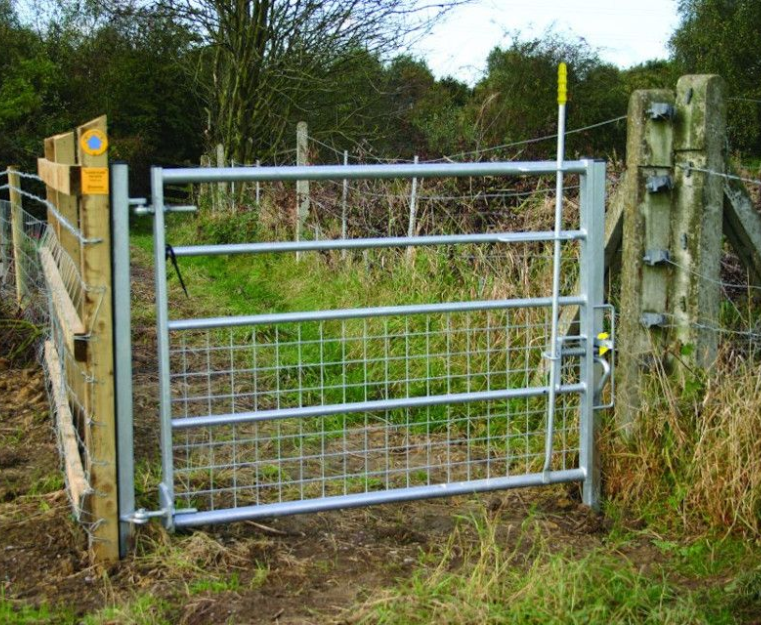

Bridle gates

Bridle paths and bridleways often require specialist gates to ensure the safety of both horse and rider, as well as the safety of your livestock or protection of your crop. If your land has right of way access including bridleway access (or access to cyclists), then our bridle gates are perfect for keeping users safe and allowing easy access whilst preventing free roaming! Our bridle gates are made of quality galvanised steel to prevent rust or unnecessary wear and tear. Included in our range is a self-closing bridle gate designed to allow safe and easy passage (particularly for those horses who aren’t so happy to stand around whilst you close the gate!) as well as a two-way opening gate model. All of our models have the option of an extended handle which provides an easy way to open the gate on horseback.

Horse friendly gate fittings

Our equine latches benefit both horse and rider. The Animal friendly Auto latch with D striker is built with no sharp points to protect horses and livestock and includes all fixings to attach to a wooden post and wooden gate. We also supply the popular Easy latch gate fitting. This specialised latch operates in conjunction with self-closing gate systems and are designed to be easily accessible for all including riders on horseback.
