Livestock Fencing

The Clipex® Deer Standard post is a 3.0m long 14 clip post, designed specifically for all X fence 13/190 deer or boar fence patterns with one line of barbed, plain or electric above. All 13 line wires are clipped to the post to provide real strength and defend against any attention deer or boar may give the fenceline.

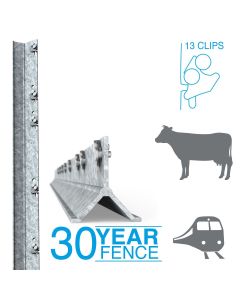

The Clipex® Deer Beefy is a 3.0m long 14 clip post, designed specifically for all X Fence 13/190 deer or boar fence mesh patterns allowing for one line of barbed, plain or electric above. All 13 lines are clipped to provide real strength and defend against any attention deer or boar may give the fence line.

The Beefy has 230% more strength than a standard post and with 60% more surface area which give it better adhesion in the ground. The Beefy can also be used on slight angles of 15 degrees or less or coupled with a deer Triple X strut (CL2750) and a beefy bracket (CL2765) they make an economical end strainer, ideal for areas of low livestock or predator pressure, such as new plantations, woodland boundaries or gardens

• Benefits

  Superior alu/zinc coated wire, lasts 3-4 longer than galvanised wire.
  • Premium primary wires only used in Xfence fabricated netting
  • Consistent superior high tensile strength wires only
  • Greater rigidity due to the one-piece vertical wires
  • Smoother and safer non-abrasive forged X knot
  • Proven in the field since its conception in 2007
  • Easier to install, almost self-supporting
  • Save on both labour and posts
  • Longer maintenance free life
  • Guaranteed to last
  • Made in New Zealand by the specialists in high tensile fencing
  • Distributed nationally by the UK’s leading fencing supplier.

• Post Specifications


Deer fencing, when properly planned, constructed and maintained, can be an effective way of controlling deer populations and allows different land uses to coexist next to each other. It can also help to protect the public. If you need to contain use heavy gauge. If you wish to exclude you can use heavy or light gauge.

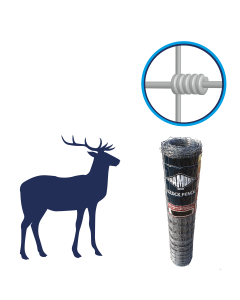

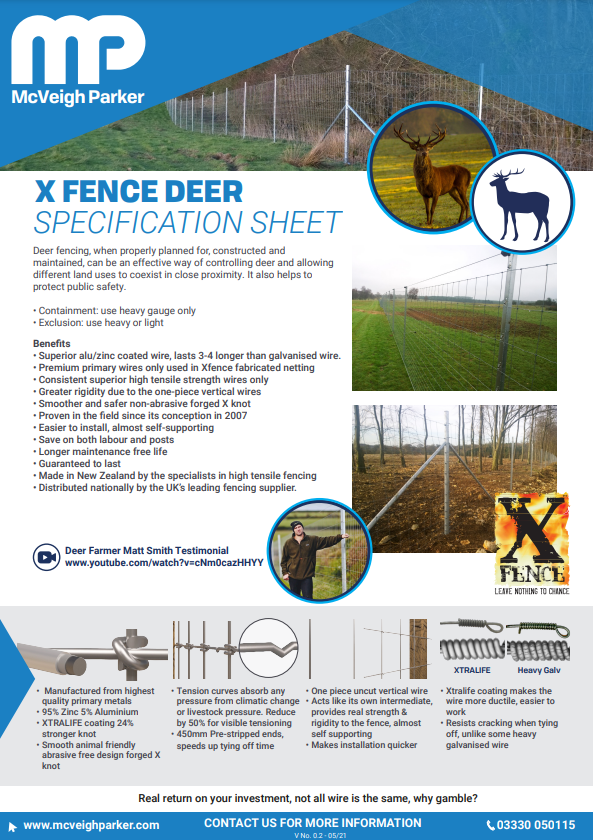

• X Fence Premium Deer Netting

  Deer fencing, when properly planned for, constructed and maintained, can be an effective way of controlling deer and allowing different land uses to coexist in close proximity. It also helps to protect public safety.
  • Containment: use heavy gauge only
  • Exclusion: use heavy or light

  Benefits
  • Superior alu/zinc coated wire, lasts 3-4 longer than galvanised wire.
  • Premium primary wires only used in Xfence fabricated netting
  • Consistent superior high tensile strength wires only
  • Greater rigidity due to the one-piece vertical wires
  • Smoother and safer non-abrasive forged X knot
  • Proven in the field since its conception in 2007
  • Easier to install, almost self-supporting
  • Save on both labour and posts
  • Longer maintenance free life
  • Guaranteed to last
  • Made in New Zealand by the specialists in high tensile fencing
  • Distributed nationally by the UK’s leading fencing supplier.

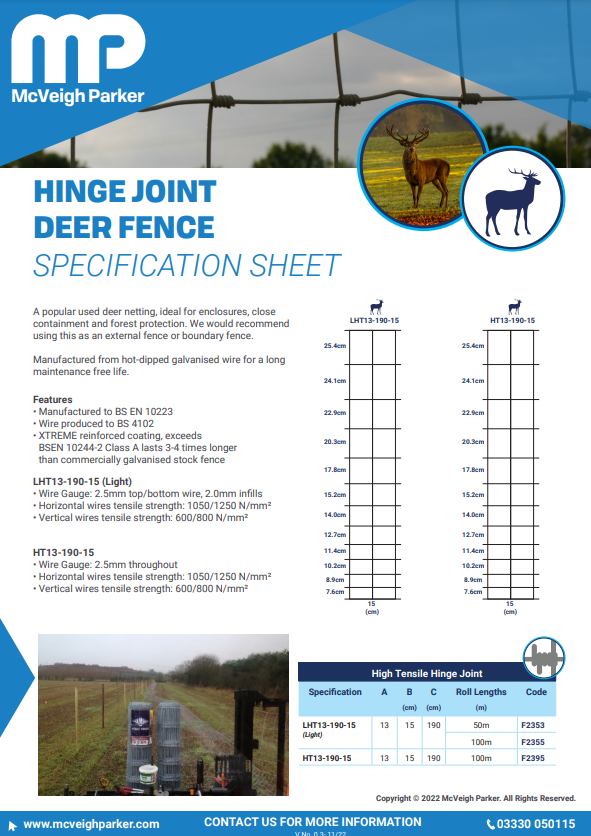

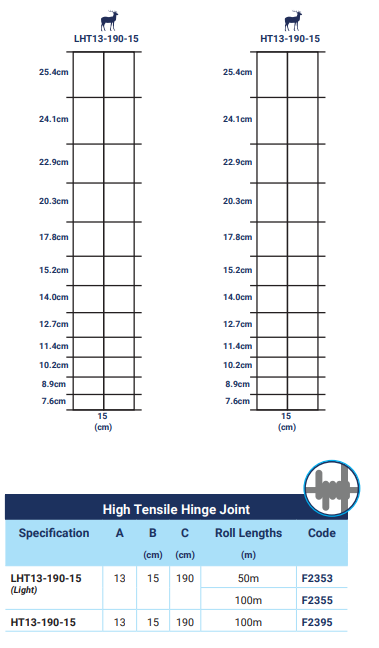

• Deer Netting (Hinge Jointed)



  A popular used deer netting, ideal for enclosures, close containment and forest protection. We would recommend
  using this as an external fence or boundary fence.  Manufactured from hot-dipped galvanised wire for a long
  maintenance free life.

  Features
  • Manufactured to BS EN 10223
  • Wire produced to BS 4102
  • XTREME reinforced coating, exceeds
  BSEN 10244-2 Class A lasts 3-4 times longer
  than commercially galvanised stock fence


  LHT13-190-15 (Light)
  • Wire Gauge: 2.5mm top/bottom wire, 2.0mm infills
  • Horizontal wires tensile strength: 1050/1250 N/mm²
  • Vertical wires tensile strength: 600/800 N/mm²


  HT13-190-15
  • Wire Gauge: 2.5mm throughout
  • Horizontal wires tensile strength: 1050/1250 N/mm²
  • Vertical wires tensile strength: 600/800 N/mm²







• Plastic Deer Netting

  High tensile strength tough yet lightweight unobtrusive extruded plastic netting. An effective yet economical exclusion barrier, the perfect solution for an immediate and quick deer protection.

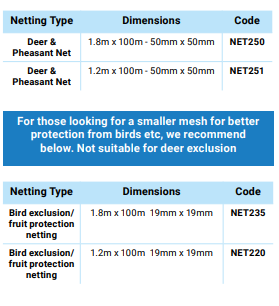

  Plastic Deer / Pheasant Netting
  HD UV-Protected Polypropylene Low-Visibility Deer Net Fencing

  This black netting creates an unobtrusive barrier, blending into the background, making it ideal for gardens. Lightweight, UV stabilised, rot proof and easy to install. This particular mesh and 1.8m fence height are designed to exclude Muntjac, Sika and Roe deer, although Fallow deer will be deterred we recommend a higher plastic or ideally a permanent galvanised wire netting fence for total exclusion.

  Erection : McVeigh Parker have a full range of posts and accessories to help with your install.  The netting can simply be cable tied to line wires, battened to timber posts or used with Clipex® steel posts and line wire system.

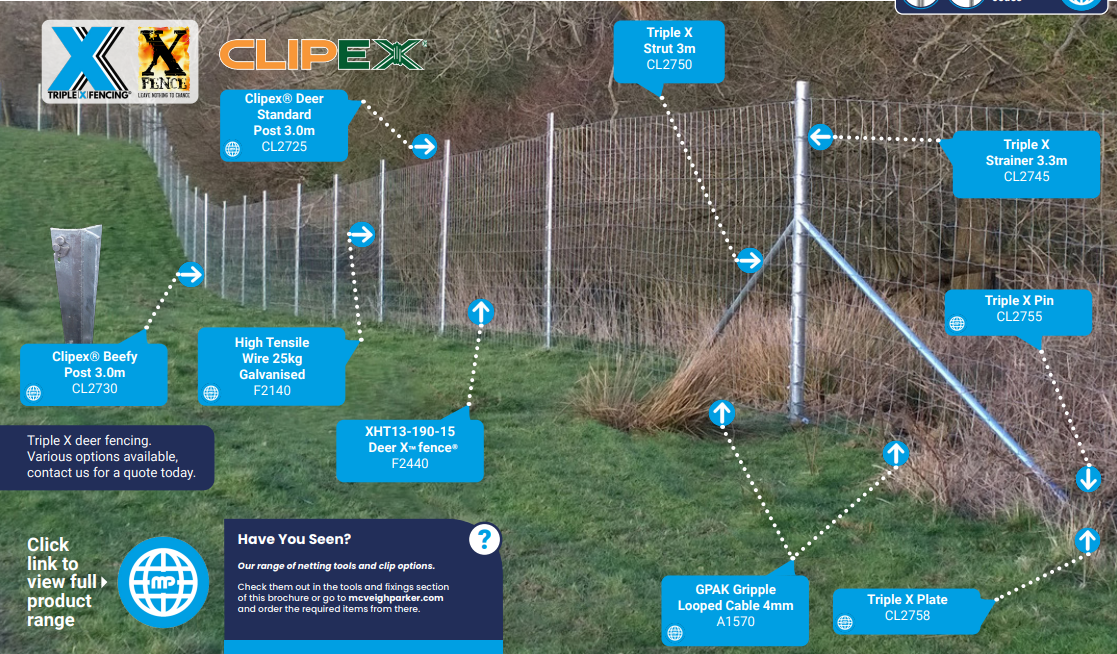

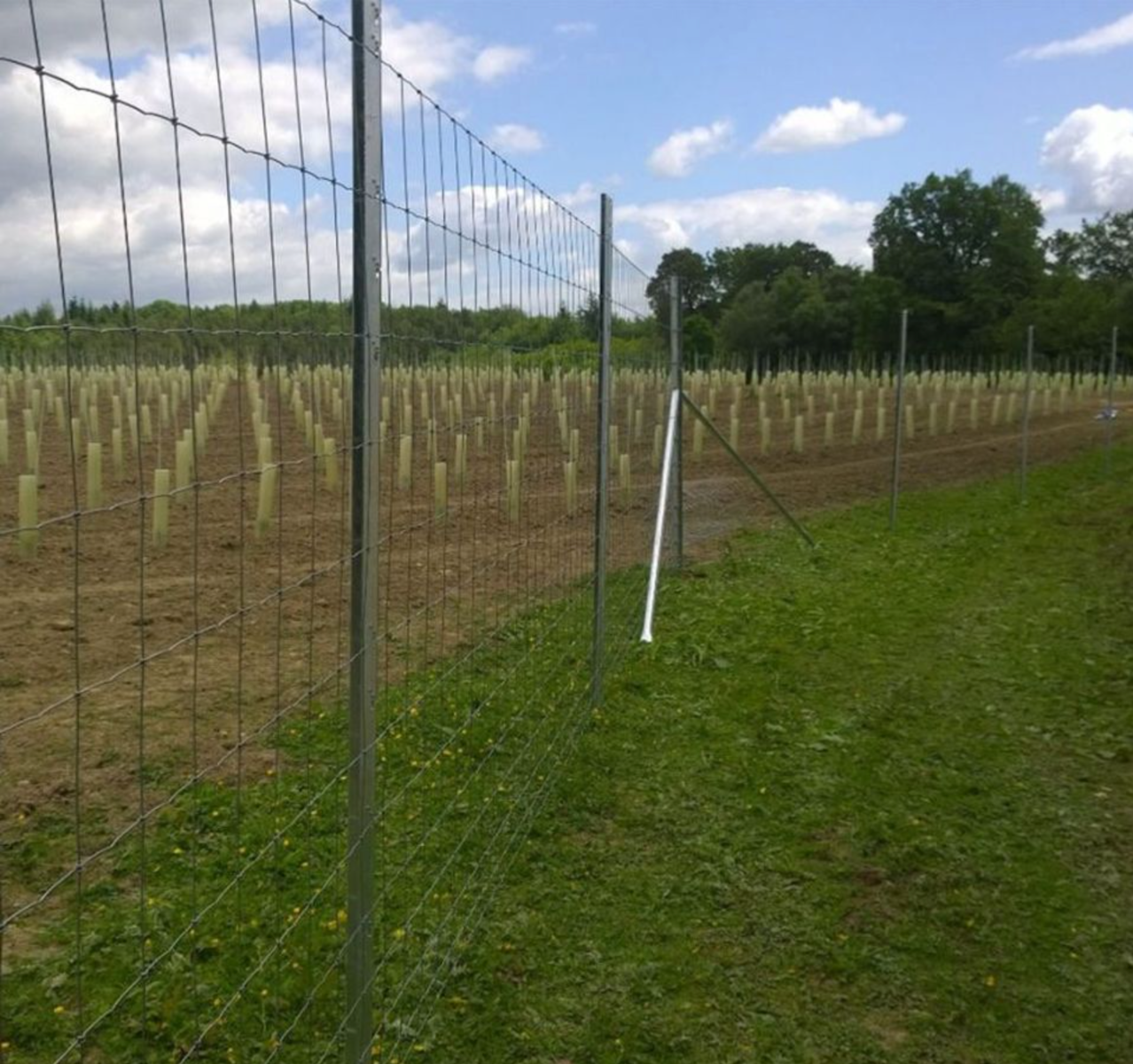

Triple X is the name we’ve given to an all-steel fencing system using the revolutionary Clipex ® steel post with X Fence premium wire netting and Triple X all steel strainers plus a choice of barbed, plain or electric wire. This is a fencing system like no other and can offer up to 50% cost savings over a more traditional fence. It is a fence with a life expectancy exceeding 30 years, takes significantly less time to erect, cutting both labour and machinery costs.

Long-life fencing solution

• Faster to erect and lighter to transport

• Strong premium long-lasting wire netting

• Up to 50% lifetime savings

• Proven in the field Multi-award winning

• All netting lines securely held

• Used by many leading organisations

• No stapling required

• No fiddly loose components

• Minimal ground disturbance

• 30 year guarantee

• Strainers made in Britain

• Clipex posts

  Clipex® is the multi-award winning innovative galvanised steel post. Each post has pre-fixed clips which are designed to take all the horizontal wires of your chosen X Fence wire netting.  Each wire is held firmly in place with a spring-loaded clip, meaning there are no fiddly parts to lose or fit after erection. These clips allow lateral flex, but very little vertical wire movement can happen, which is important when livestock start putting pressure on the fence.  Each post has a pre-fixed anti-lift plate below ground level to prevent lifting in soft or undulating ground. Clipex posts are hot dip galvanised and independently tested in the UK, exceeding British Standard coating recommendations.

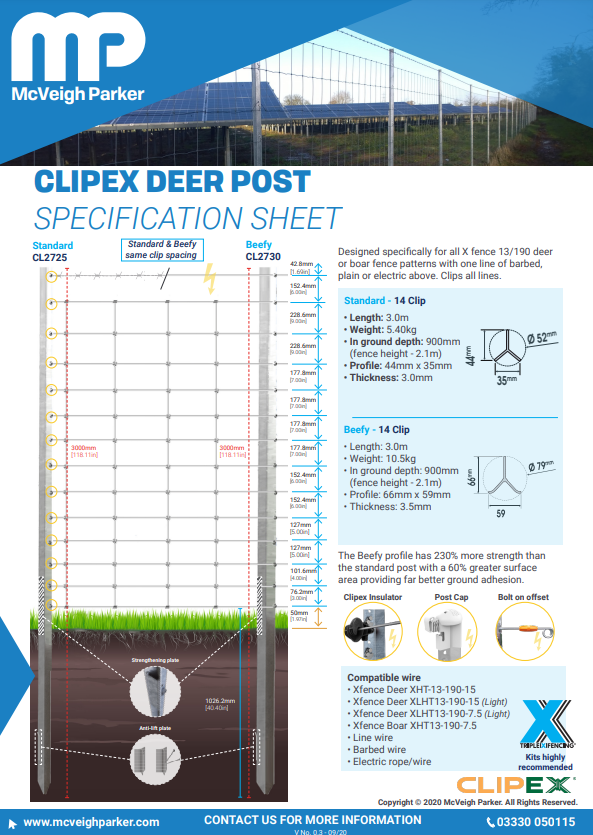

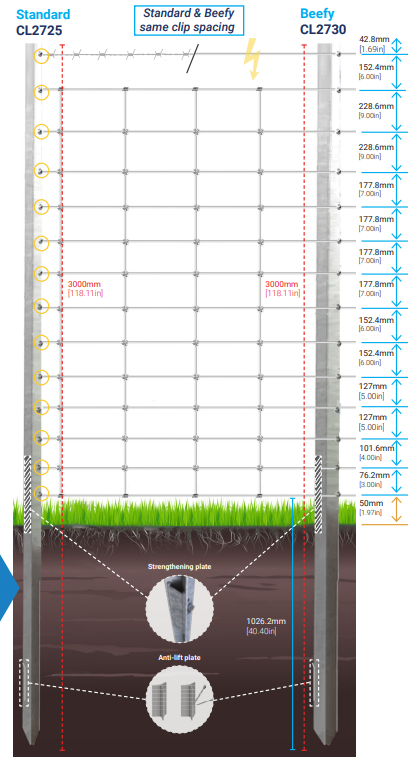

  The Clipex® Deer Standard post is a 3.0m long 14 clip post, designed specifically for all X fence 13/190 deer or boar fence patterns with one line of barbed, plain or electric above. All 13 line wires are clipped to the post to provide real strength and defend against any attention deer or boar may give the fenceline.


  This deer standard post is suitable for long runs that may get occasional attention, however if real strength or highly populated areas or enclosures are required, then we would recommend using the stronger Deer Beefy posts. Beefy posts have a larger profile with 60% increased surface area and up to 230% more lateral strength due to the unique flange profile.

  The Clipex® Deer Beefy is a 3.0m long 14 clip post, designed specifically for all X Fence 13/190 deer or boar fence mesh patterns allowing for one line of barbed, plain or electric above. All 13 lines are clipped to provide real strength and defend against any attention deer or boar may give the fence line.


  The Beefy has 230% more strength than a standard post and with 60% more surface area which give it better adhesion in the ground. The Beefy can also be used on slight angles of 15 degrees or less or coupled with a deer Triple X strut (CL2750) and a beefy bracket (CL2765) they make an economical end strainer, ideal for areas of low livestock or predator pressure, such as new plantations, woodland boundaries or gardens.

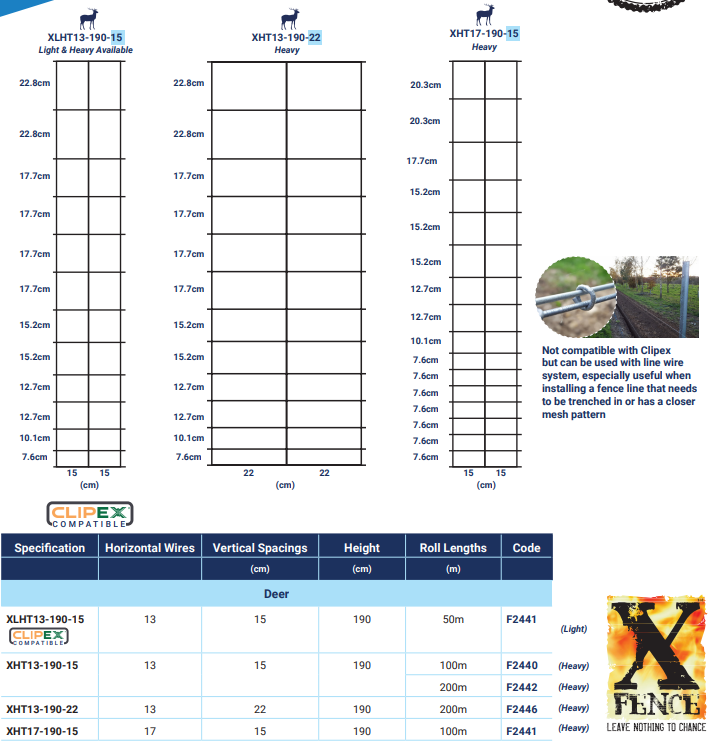

• X fence premium deer netting



  X fence fabricated fencing systems are world renowned for their durability and market leading quality.

  Using only the highest quality raw materials in their state-of-the-art production facility, X fence has been tried and proven in the harshest conditions and most testing applications worldwide.

  • Stronger wire
  • Premium coating
  • Easier installation
  • Longer maintenance free life



  What separates X™ fence from the rest?
  X fence is the original X knot stiffstay product
  Only primary metal used, which means you get consistent tensile strength every time
  Every roll comes with 450mm pre-stripped ends, which make tying off easier and quicker
  Alu/zinc coated which gives 3-4 times longer life than standard galvanised products
  The alu/zinc coating also makes the wire more ductile, easier to work with and won’t crack when tying off, which can happen with some heavy galvanised products
  X fence have years of experience in producing a premium product, having this knowledge has enabled them to apply the correct pressure on the knots which reduces the wire snapping at the knots when tying off which can happen with similar products
  Guaranteed meterage
  Higher tensile strength than some cheaper heavy galvanised products helps retain tension over the life of the fence
  Non-abrasive knot, prevents hide damage
  The British Standard BSEN 10244-2 coating lists a sacrificial zinc coat of 230 grm‐2, X fence exceeds these standards with a Alu/Zinc alloy coating which offers an extended life protection
  X fence exceeds European Standards for strength and galvanisation and is manufactured to BSEN 10223-5

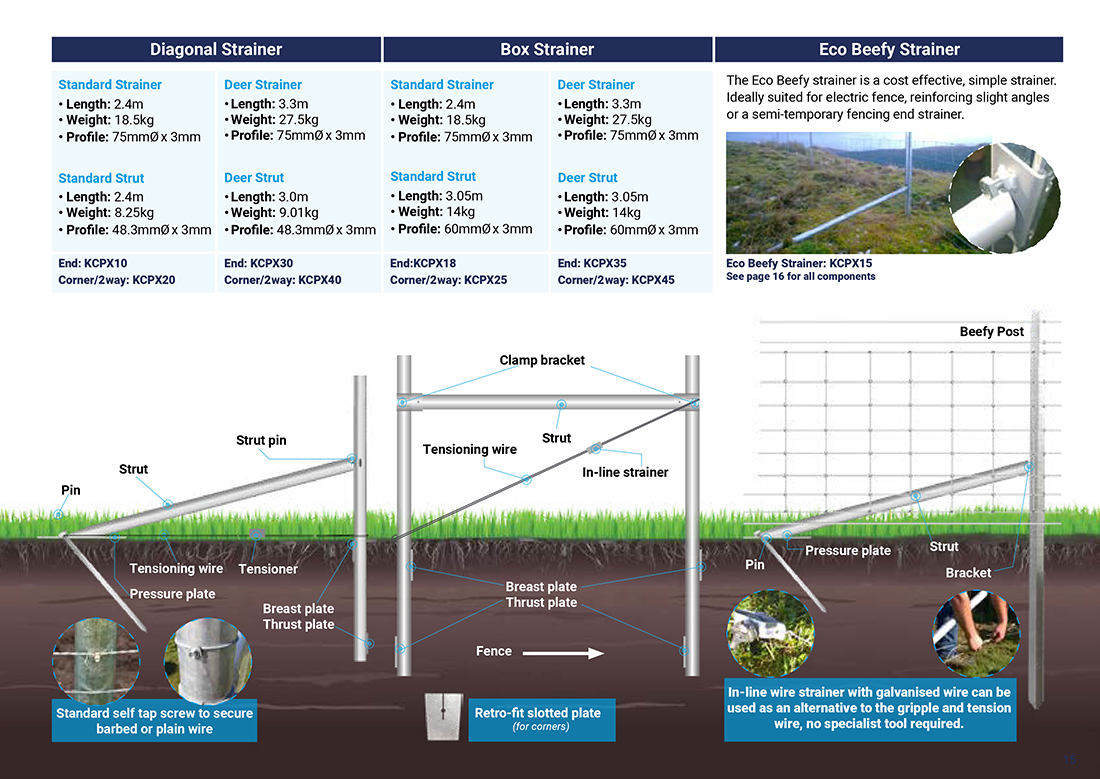

• Triple X strainers

  Triple X Strainers have been designed by McVeigh Parker and are proven in the field throughout the UK. Used by contractors, utility companies, farmers and landowners for stock, deer and security fencing. Our British made strainers are a very good alternative to more traditional timber strainers, lasting much longer and saving significant installation and labour time. When teamed up with the Clipex® posts and our premium quality X Fence alu/zinc wire netting you have a fencing system that has a life expectancy of over thirty years.

  Benefits

  • Simple and quick installation in under five minutes

  • Cost-effective over the lifetime of fence

  • Guaranteed to exceed a 30 year life

  • Diagonal or Box strainer kits available to suit all terrain and soil

  • Only five components, easy to assemble, no fiddly parts to install or lose

  • Exceptionally strong, fully welded top cap, the thick-walled tubular strainer can be mechanically or hydraulically driven



Ideal for deer fencing and deer enclosures, the deer gates we have to offer are the very best choice for reliability and strength. Our deer gates provide you with a secure entry and exit point to your deer fencing without weakening the enclosure. All of our deer gates are fully meshed and have universal hanging with a central sliding bolt and with the option of metal or wooden posts depending on preference. Whilst our deer gates are intended for deer enclosures, they can also be used for slurry lagoons, security and dog compounds. In addition to our deer gates below, we can also offer a bespoke made to order service to fit your exact requirements.

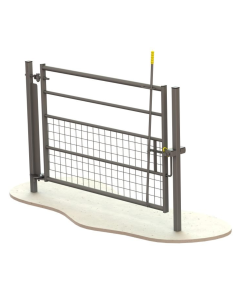

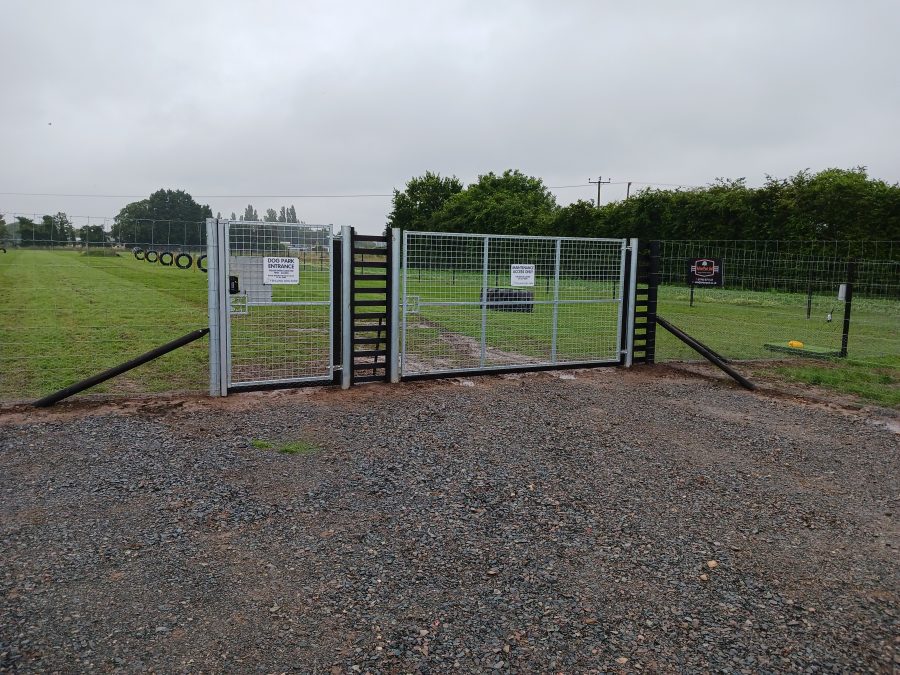

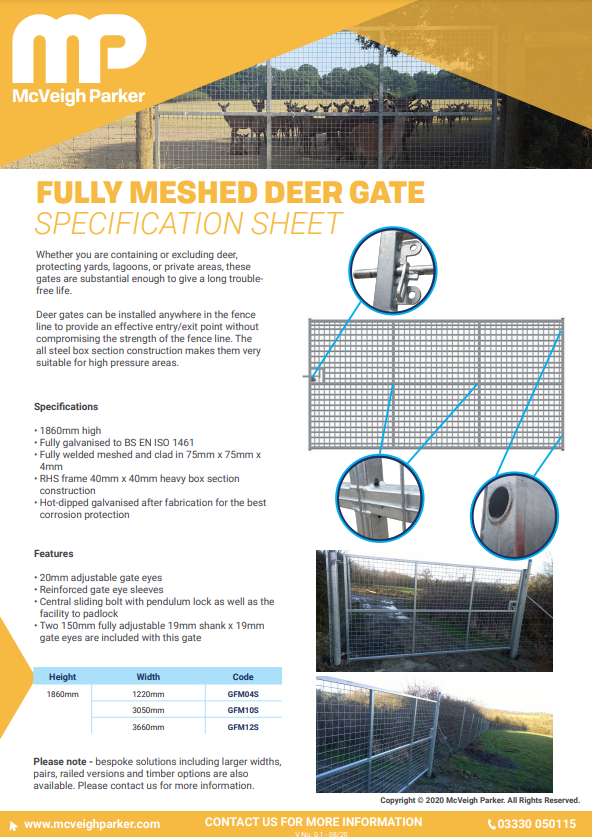

• Metal Deer Gates

  Ideal for deer fencing and deer enclosures, the deer gates we have to offer are the very best choice for reliability and strength. Our deer gates provide you with a secure entry
  and exit point to your deer fencing without weakening the enclosure. All of our metal deer gates are fully meshed and have universal hanging with a central sliding bolt and
  with the option of metal or wooden posts depending on preference.

  Suitable for containing or excluding deer
  • 1860mm high, 75mm mesh cladding and lockable sliding bolt
  • Fully galvanised to BS EN ISO 1461
  • It is available in lengths from 0.6m (1’9”) – 4.88m (16’0”)
  • Can be hung as pairs

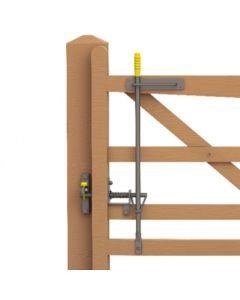

• Wooden Deer Gates



  Wooden deer gates provide a natural look that blends seamlessly into the background. They are suitable for adding to an existing fence line or for use as a driveway/entrance gate when a taller height is required compared to traditional Universal or Yeoman wooden gates.

  Our wooden deer gates feature morticed joints for added strength and an optional heavy bottom rail for extra rigidity. Constructed from pressure-treated softwood, they stand 1830mm high and are available in lengths up to 3660mm. A full range of fittings is also available.

  Made to measure
  • Features morticed joints for added strength & optional heavy bottom rail for extra rigidity
  • Available in lengths up to 3600mm long







• Deer Posts



  Post	Dimensions	Details	Code
  Slotted deer post	2.598m x 114mm	Slotted latch post	GPSDG2G
  Hanging deer post	3.05m x 114mm	c/w 16mm base hole for re-bar reinforcement	GPHDG2G
  Wooden gate post	3m x 175mm x 175mm		WGP383
